BSY 575 S, Built 2017 | Steel hull, aluminium deck saloon | 3 double cabins | Lying in Istanbul, Turkey

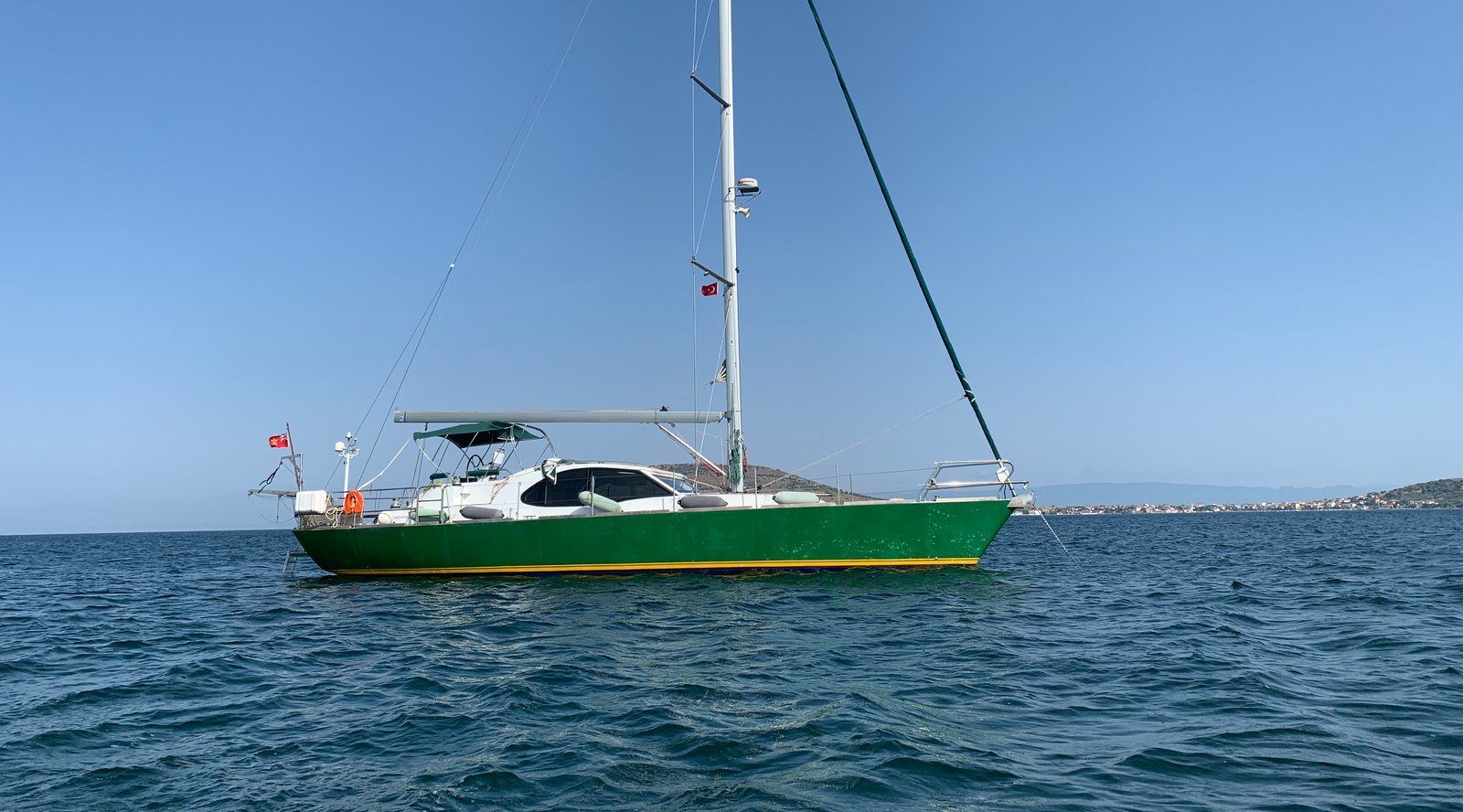

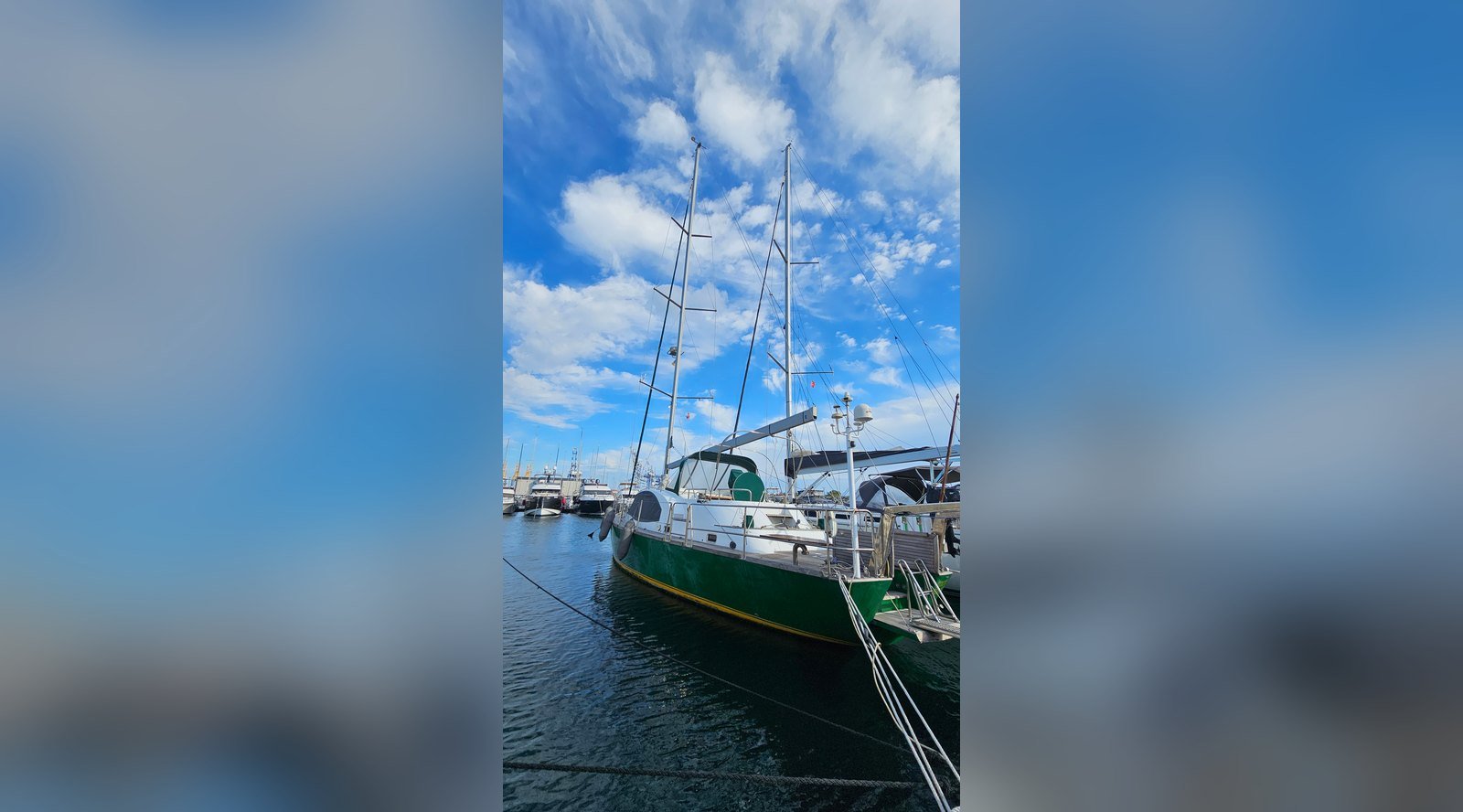

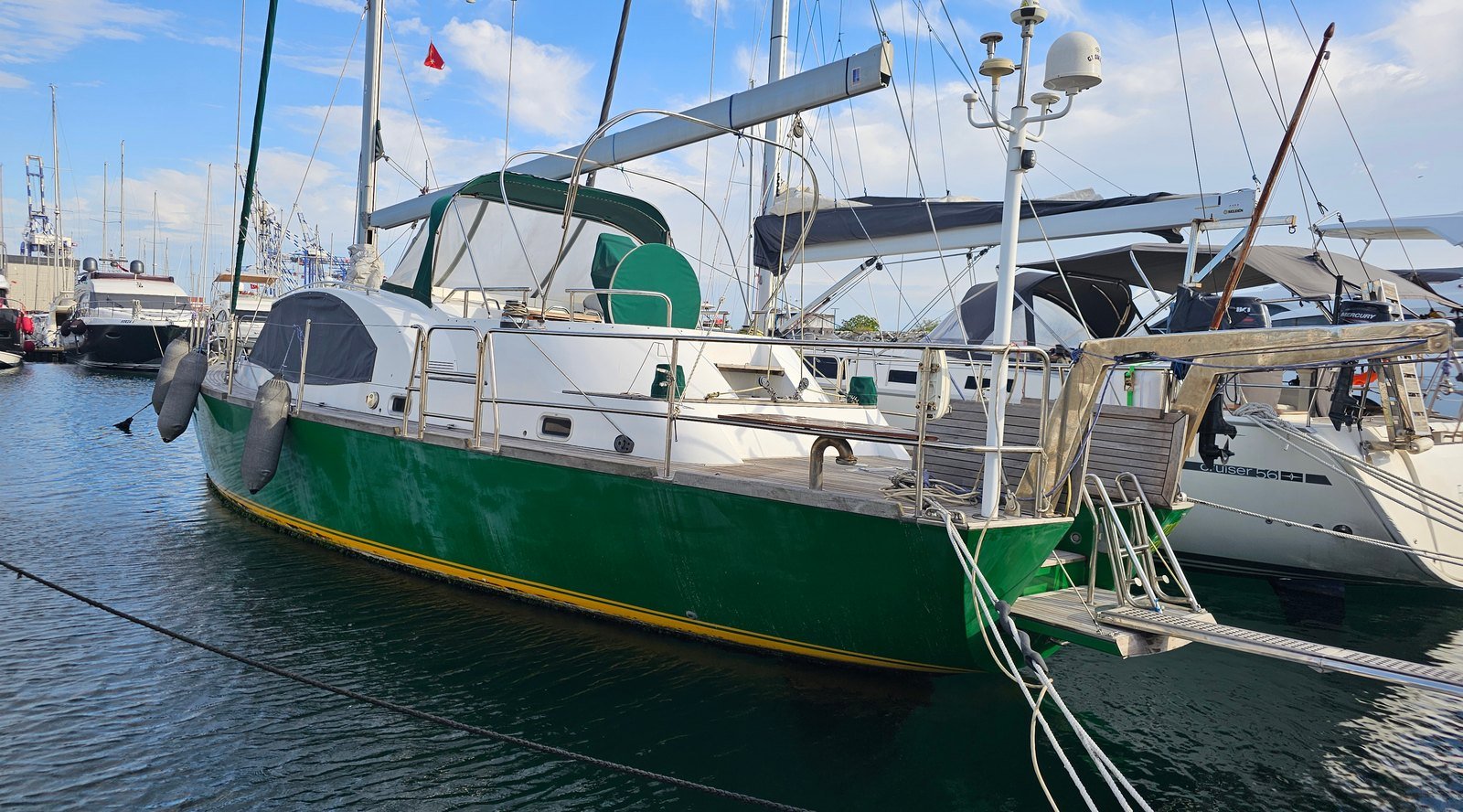

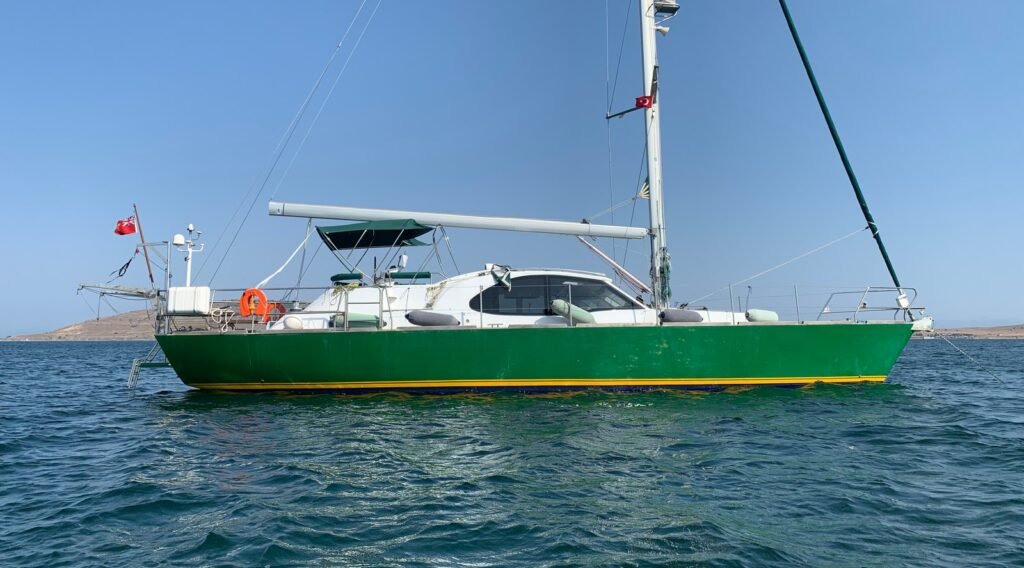

This 2017 BSY 575S is a 17.2 m steel and aluminium deck saloon sloop built by Black Sea Yacht Shipyard (BSY) in Mykolaiv, Ukraine. Designed for all-season cruising for Bluewaters with a small crew, she combines a deck saloon with an inside helm and 360° views, a high and protected centre cockpit with a second helm, and three double cabins with individual air conditioning.

Her steel hull, aluminium superstructure and 10 mm Burmese teak decks are matched by a comprehensive blue-water specification: Fischer Panda generator, Idromar watermaker, MAR-IX air conditioning, Eberspächer heating, Quick bow thruster, four electric Antal winches controlled from the helm, electric furling and full Raymarine navigation at both helm stations. Located in Istanbul, Turkey.

Asking price: 339,000 Euros

Main Features

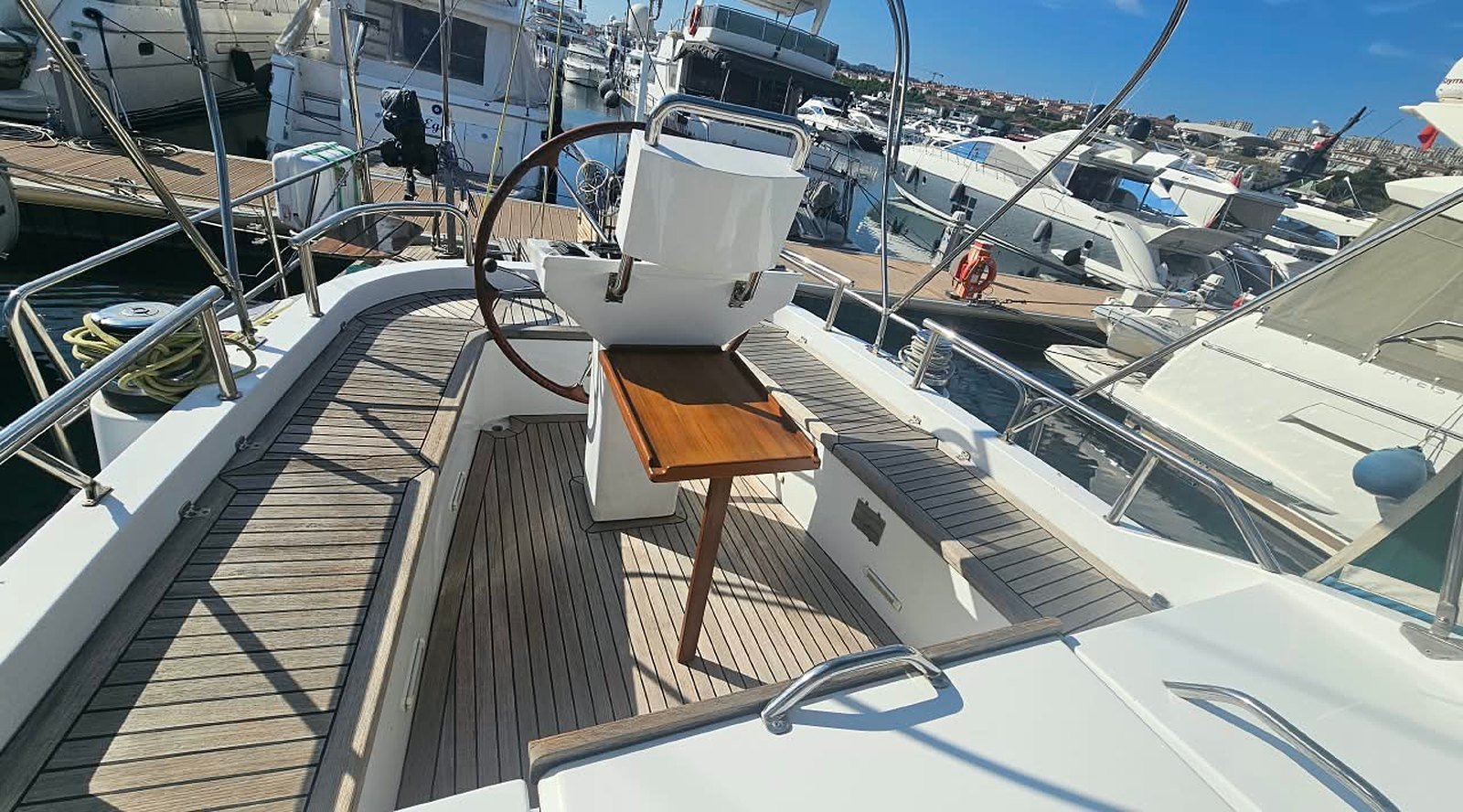

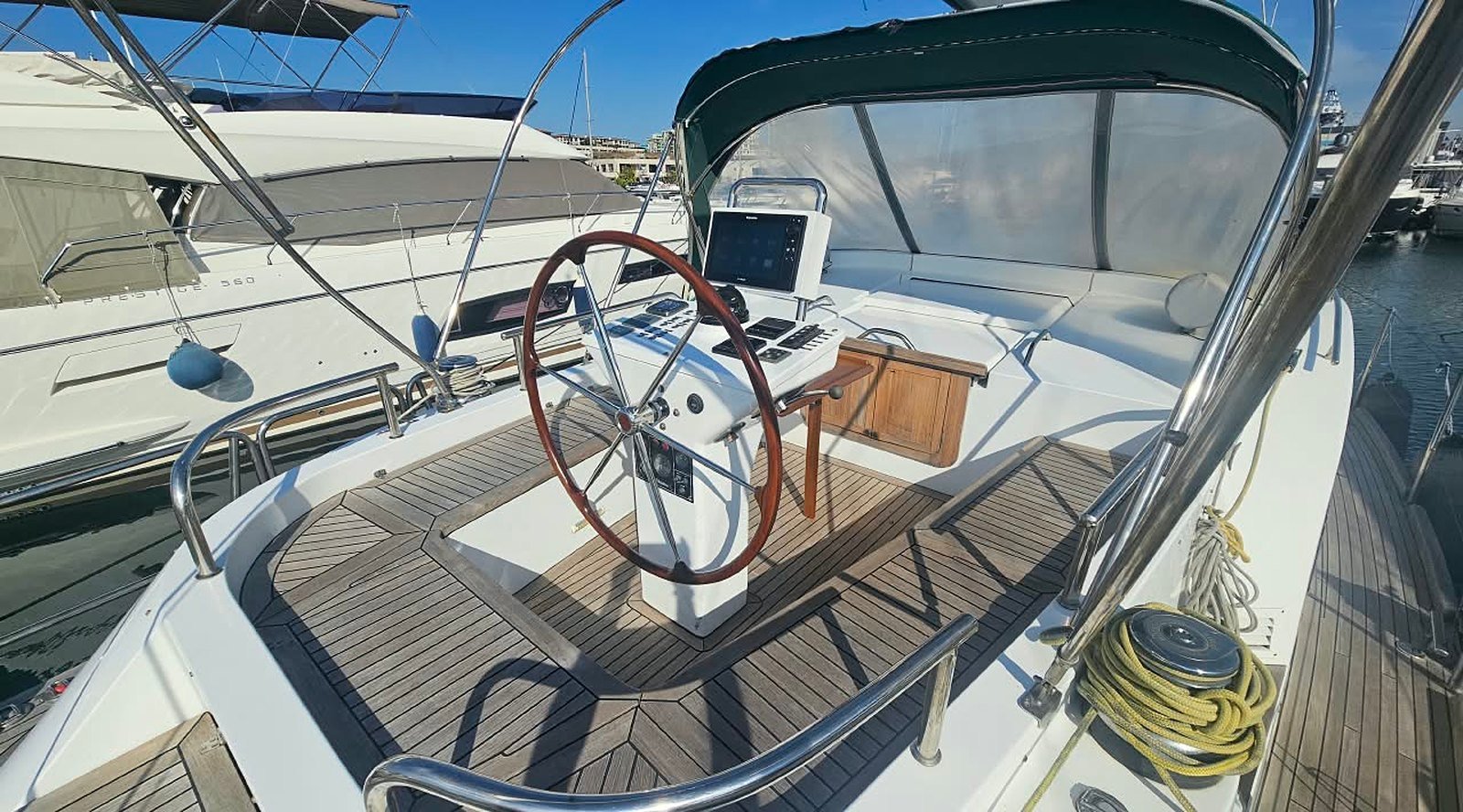

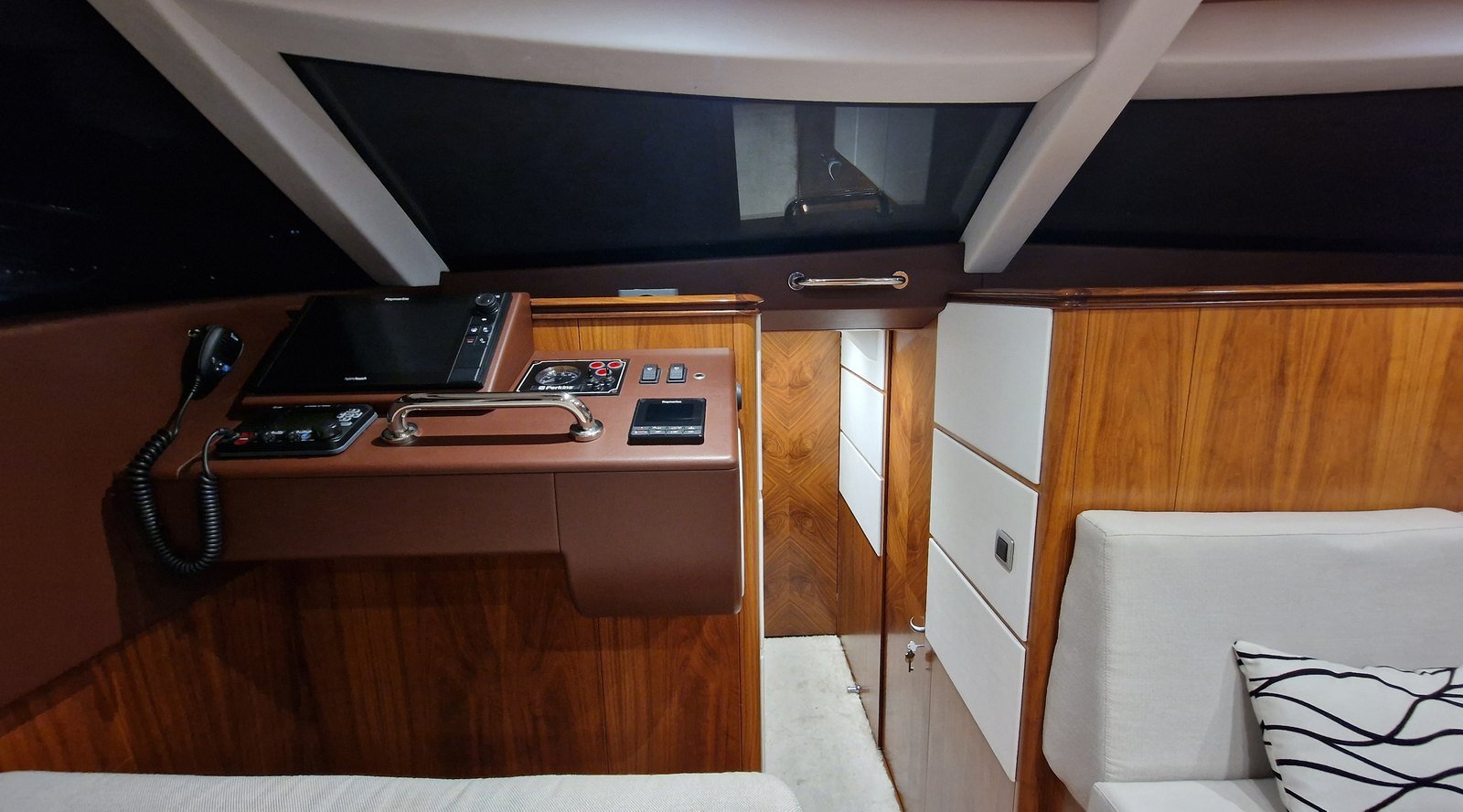

• Deck saloon with 360° view and inside helm station, plus centre cockpit with second helm
• Steel hull (bottom and keel 5 mm, topsides and deck 4 mm), aluminium superstructure
• 10 mm Burmese teak decks
• 3 double cabins, each with individual air conditioning
• Perkins M92B 86 HP diesel engine, ZF gearbox, MaxPro 26″ propeller
• Fischer Panda 12000x PMS generator
• Idromar MC-1J watermaker – 1,500 lt/day
• MAR-IX inverter air conditioning and Eberspächer Hydronic M12 diesel heating
• Quick BTQ 250-140 bow thruster
• Furling mainsail (80 m²) and self-tacking jib with electric furling (49 m²)
• 4 x Antal XT62 two-speed electric winches with remote control from the helm
• 2 x Raymarine ES127 Hybrid Touch displays, radar, AIS and ACU-400 autopilot
• Hydraulic steering (HyDrive)
• Quick electric windlass with chain counter, Lewmar 48 kg anchor and 100 m chain
• Video monitoring of the engine room and anchor chain from the helm stations
• Mastervolt charger and inverter, 12 kW isolation transformer for shore power
• Folding bathing platform with hot shower
• Washing machine, induction hob and Vitrifrigo refrigerator
• GLOMEX weBBoat internet, folding TV and HiFi stereo in saloon and cockpit

Specifications

L.O.A. : 17.20 m
Beam : 4.67 m
Depth : 2.27 m (builder’s data)
Displacement : 29 t (full load)
Ballast : 5 t
Tonnage : 29.17 GT
Year of Build : 2017
Builder : Black Sea Yacht Shipyard (BSY), Mykolaiv, Ukraine
Model : BSY 575S
CE Design Category : A

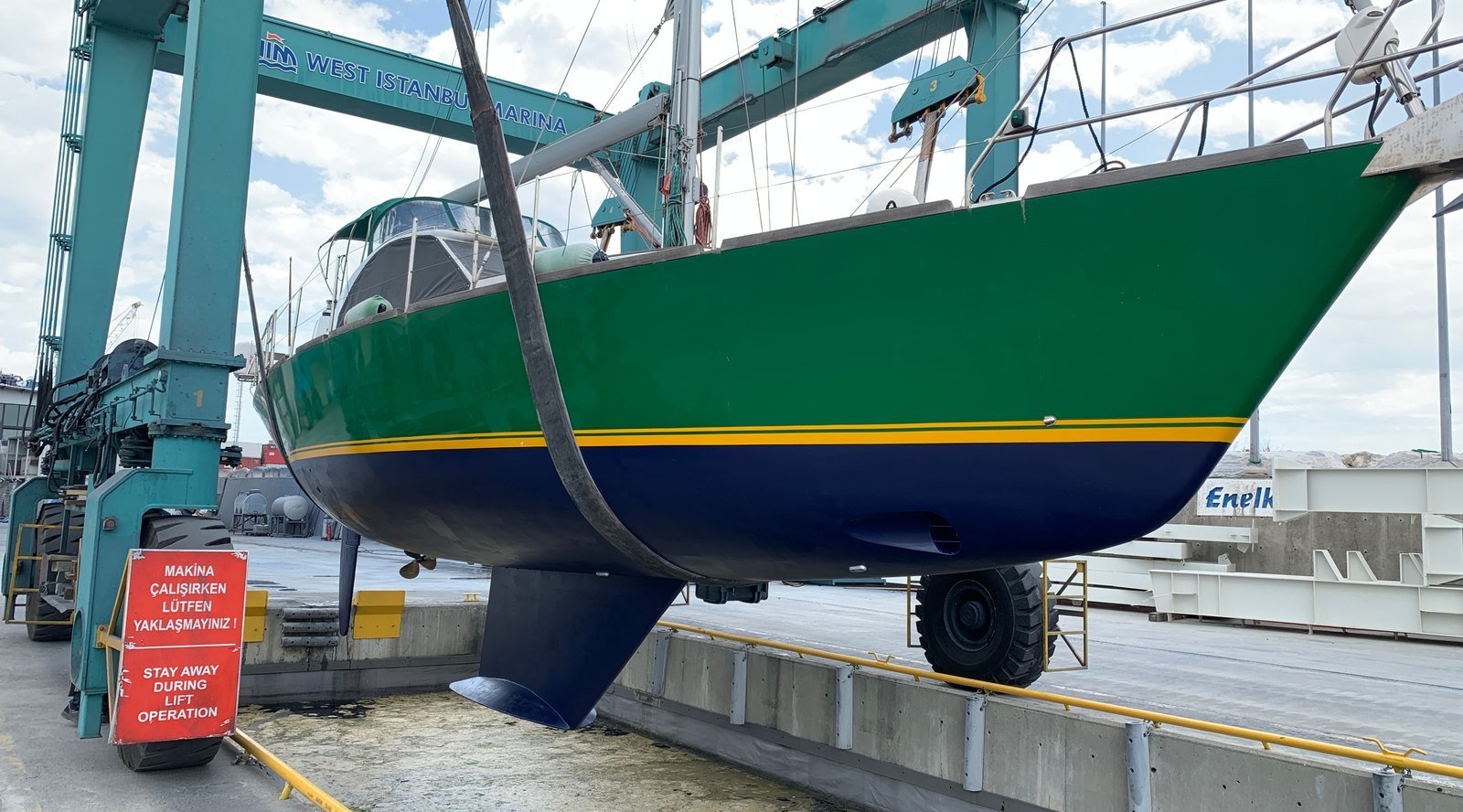

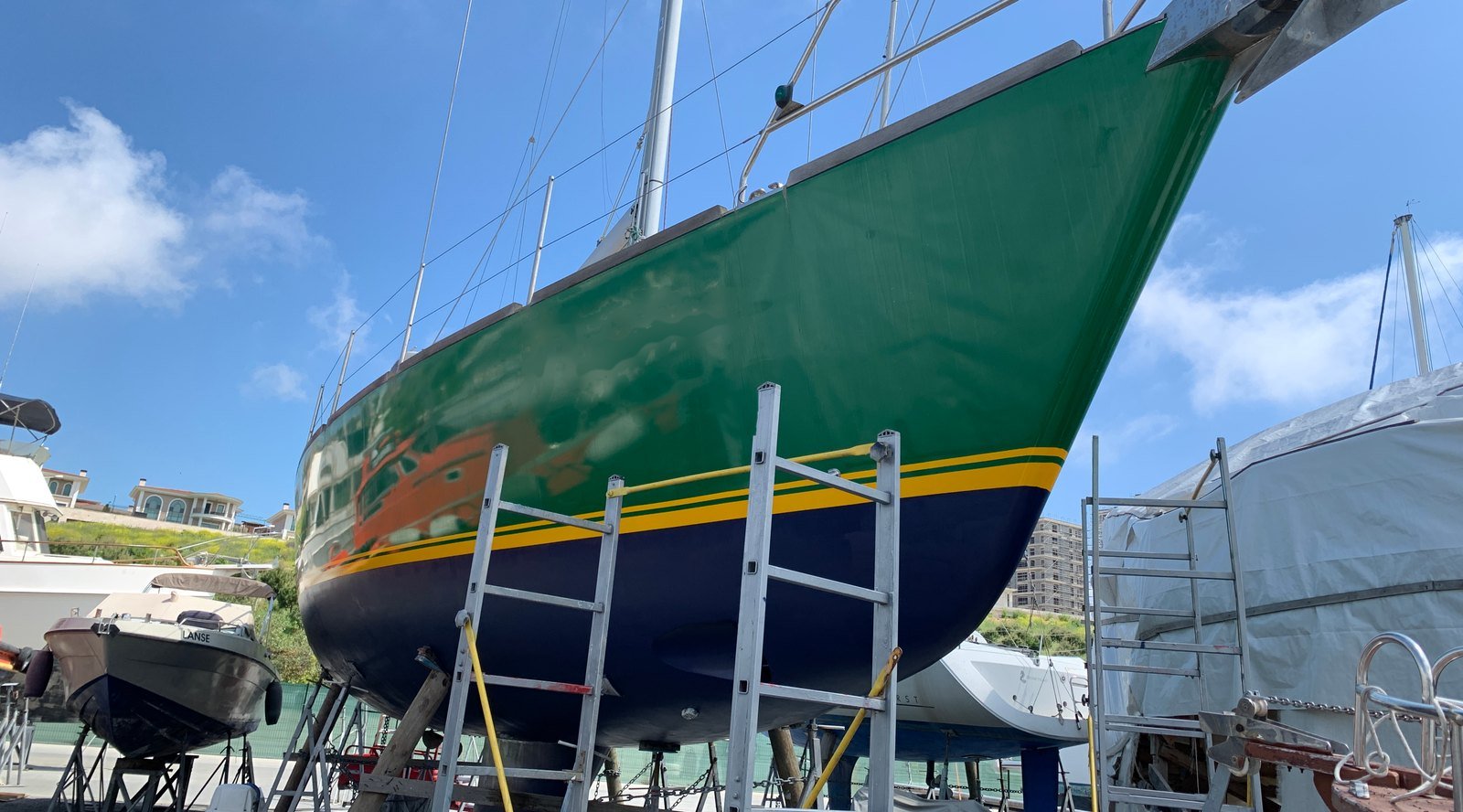

Hull Material : Steel – bottom and keel 5 mm, topsides and deck 4 mm
Superstructure : Aluminium (AlMg, from 4 mm)
Rig : Sloop – Sparcraft mast and standing rigging
Guests : 6 (3 double cabins)

Tankage

Fuel Capacity : 1,300 lt (2 x 650 lt)
Water Capacity : 750 lt (2 x 375 lt)
Grey Water Tank : 249 lt
Black Water Tank : 249 lt

Engine & Machinery

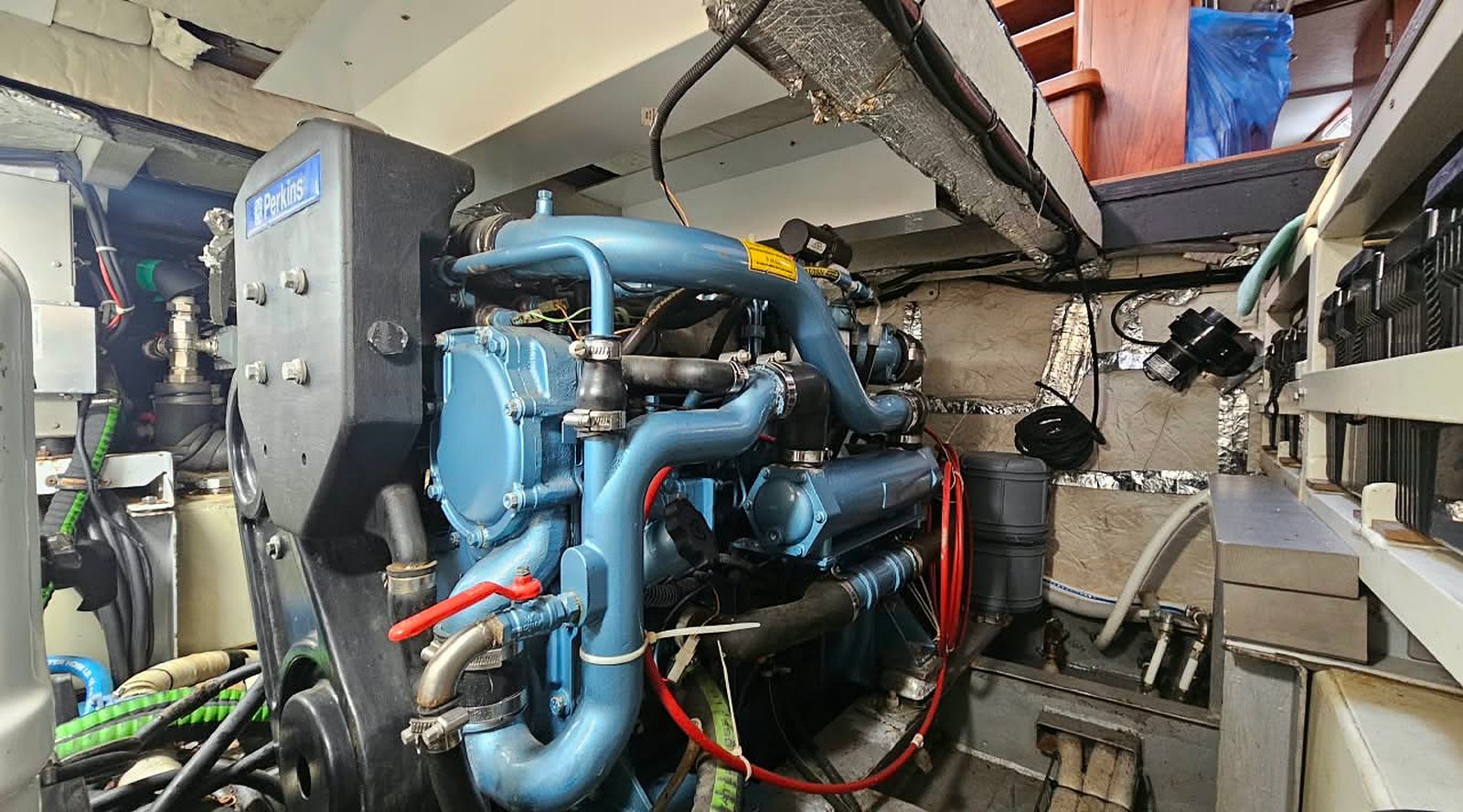

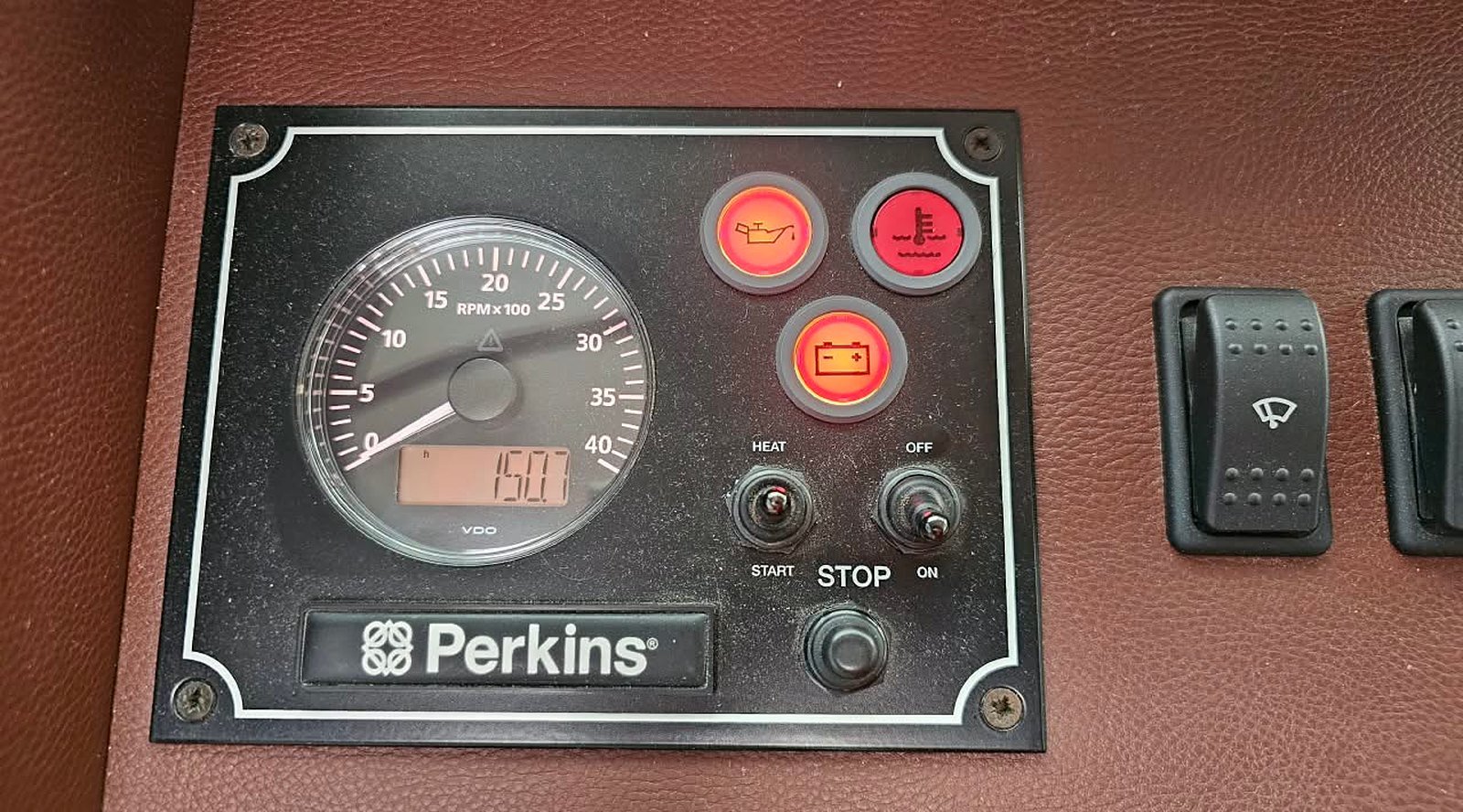

Engine Type : Perkins M92B
Engine Power : 86 HP (64 kW)
Engine Date : 2017
No of Hours : 150hrs
Gearbox : ZF 45A
Propulsion / Propeller : Shaft drive (50 mm AISI 329), MaxPro 26″

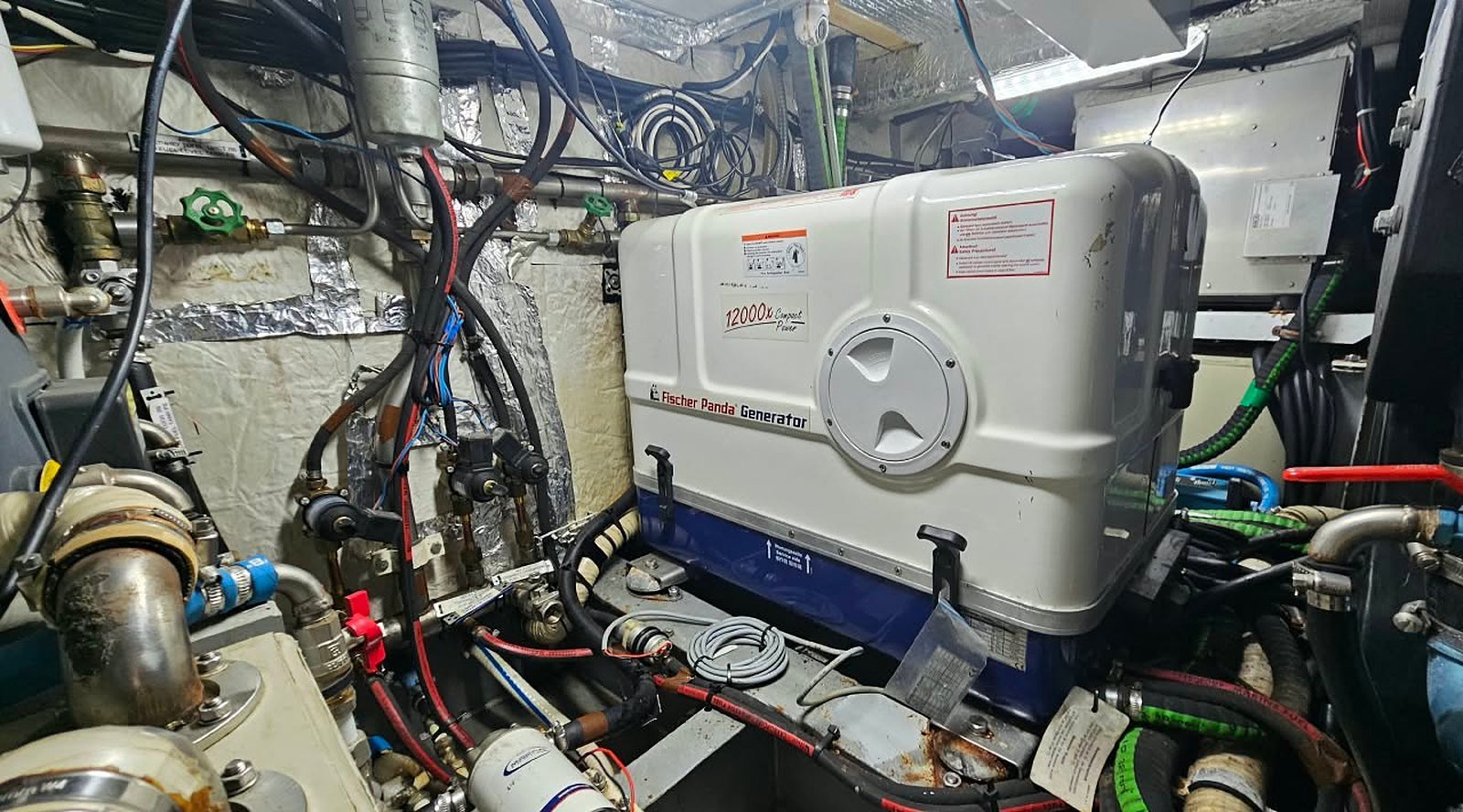

Generator : Fischer Panda 12000x PMS – 53Hrs

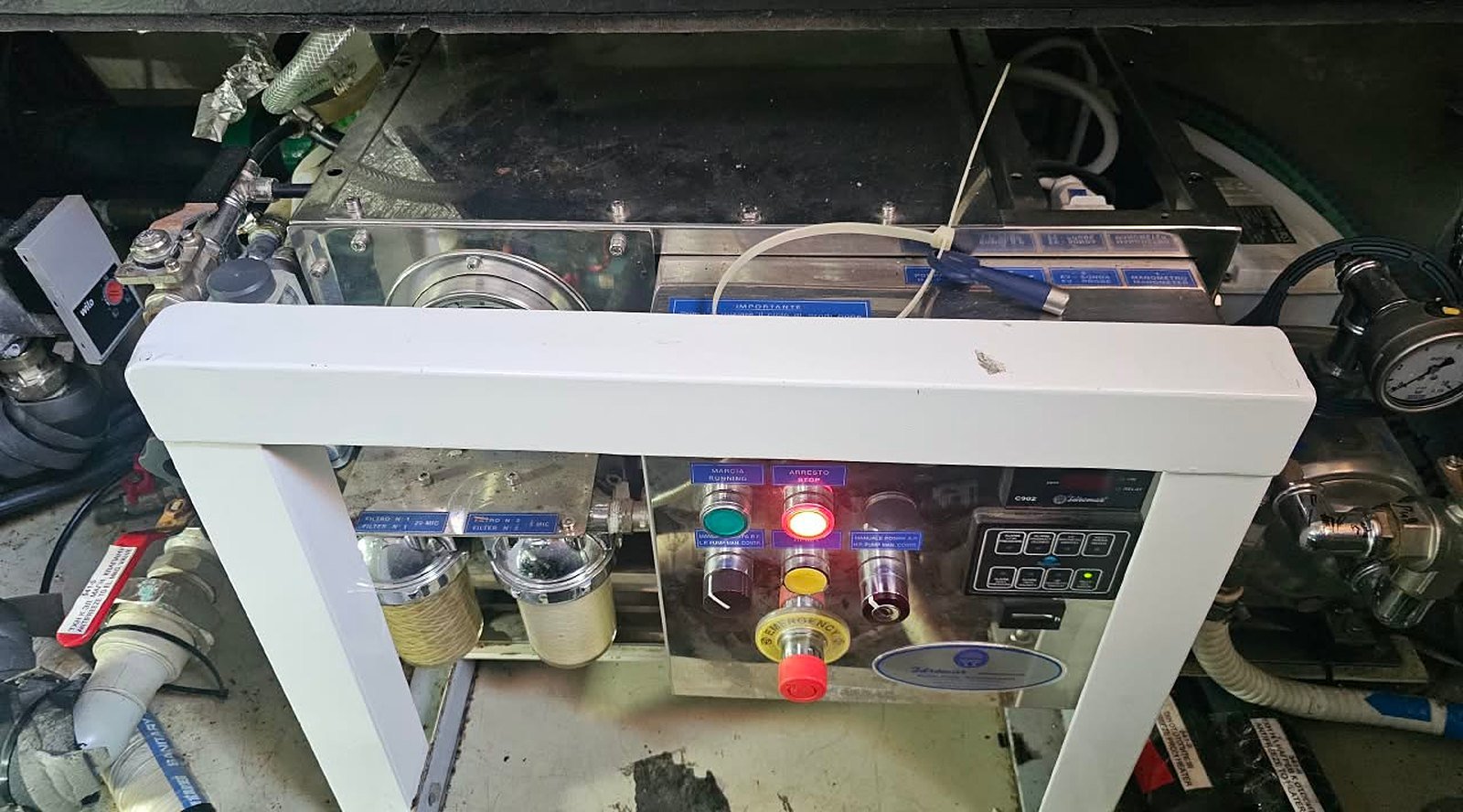

Watermaker : Idromar MC-1J – 1,500 lt/day
Air Condition : MAR-IX Arctic inverter chiller, individual cabin units
Heating : Eberspächer Hydronic M12 diesel heater
Water Heaters : Quick BX40 (40 lt) and Quick BO30 combined boiler (30 lt)
Electrical : 24 V DC, Philippi backlit main panel
Battery Charger : Mastervolt 80 A
Inverter : Mastervolt 1 kW, 24 V / 12 V converter
Shore Power : 230 V, 12 kW isolation transformer
Engine Room : Soundproofed, automatic fire extinguisher, video monitoring

Deck & Safety

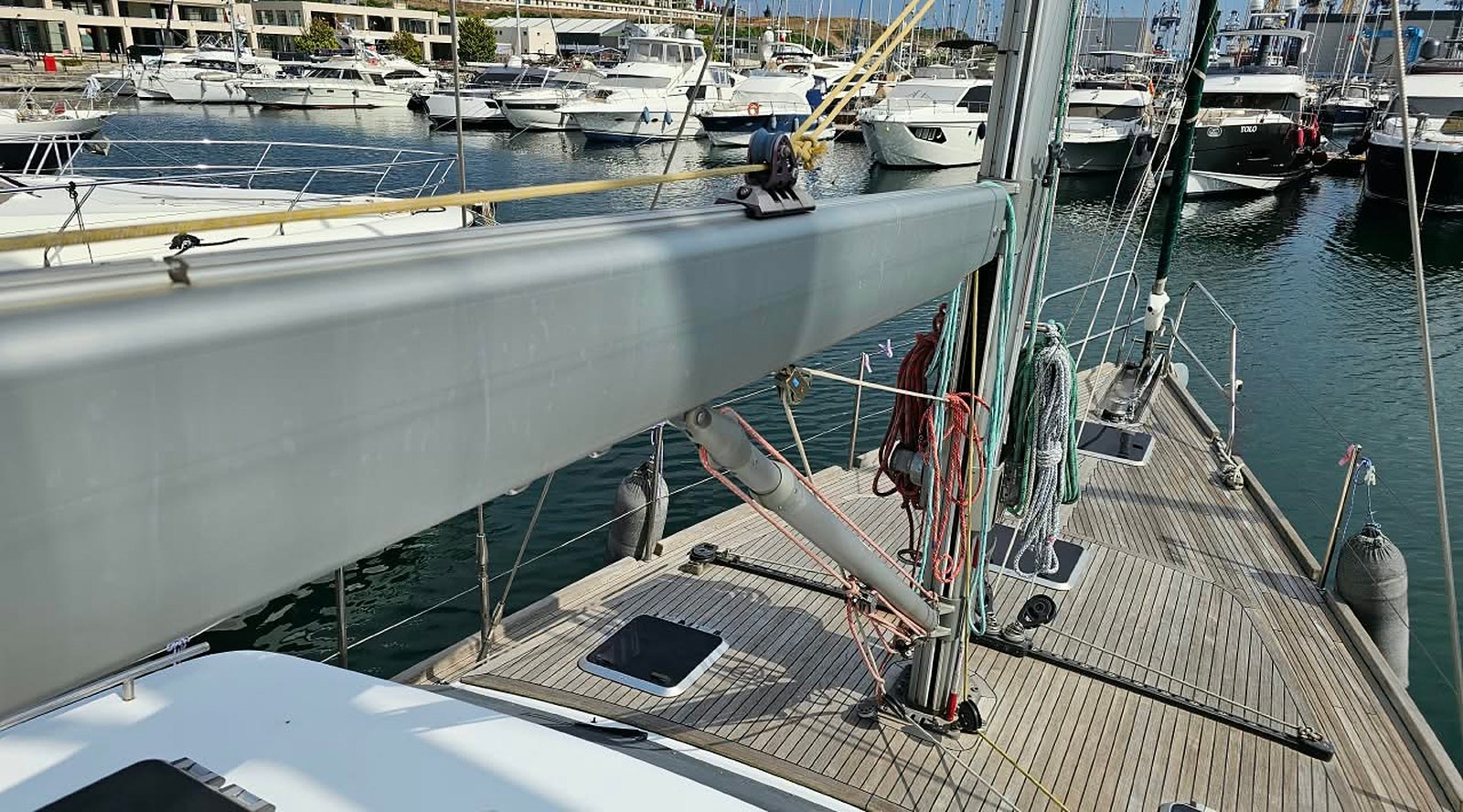

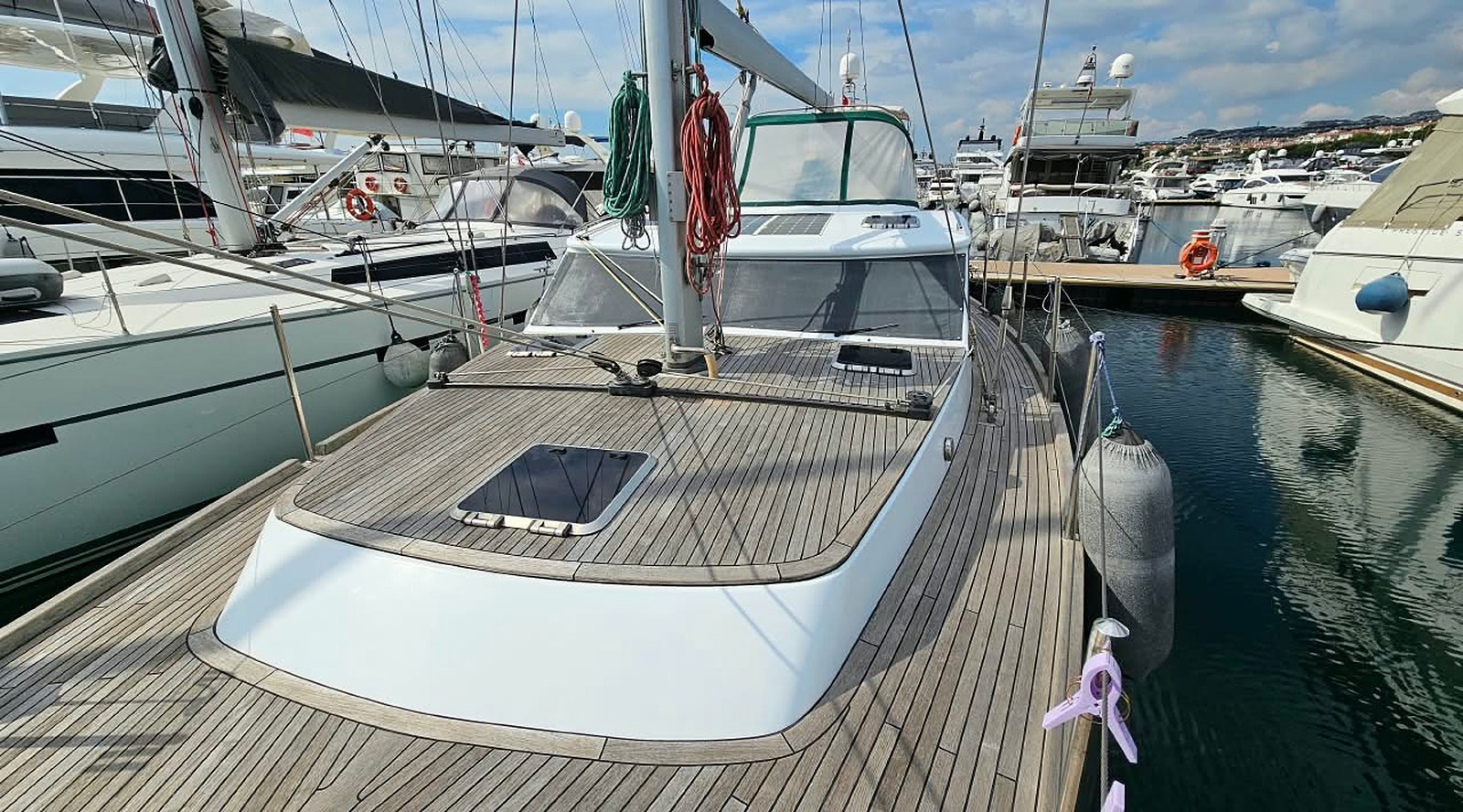

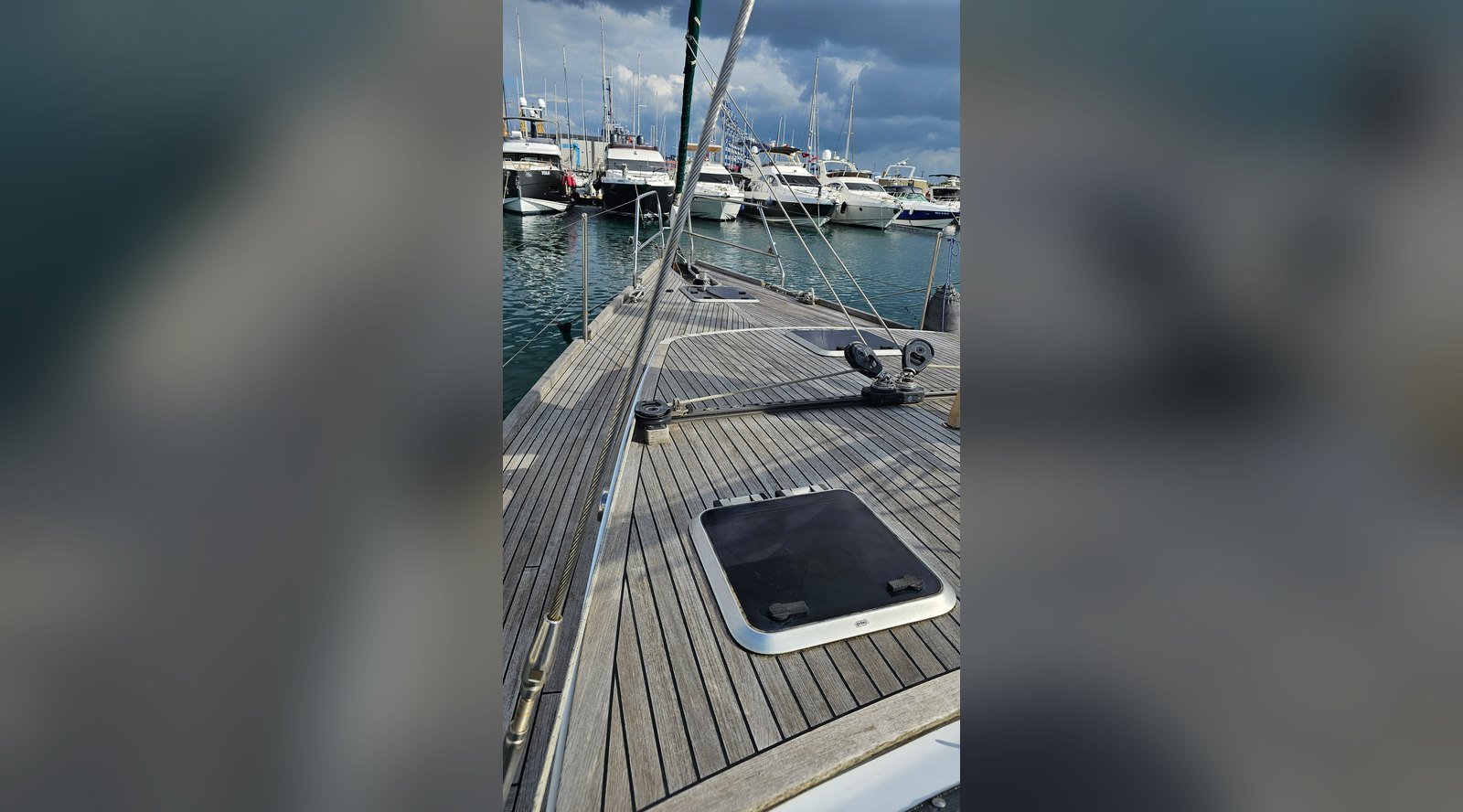

Decks : 10 mm Burmese teak

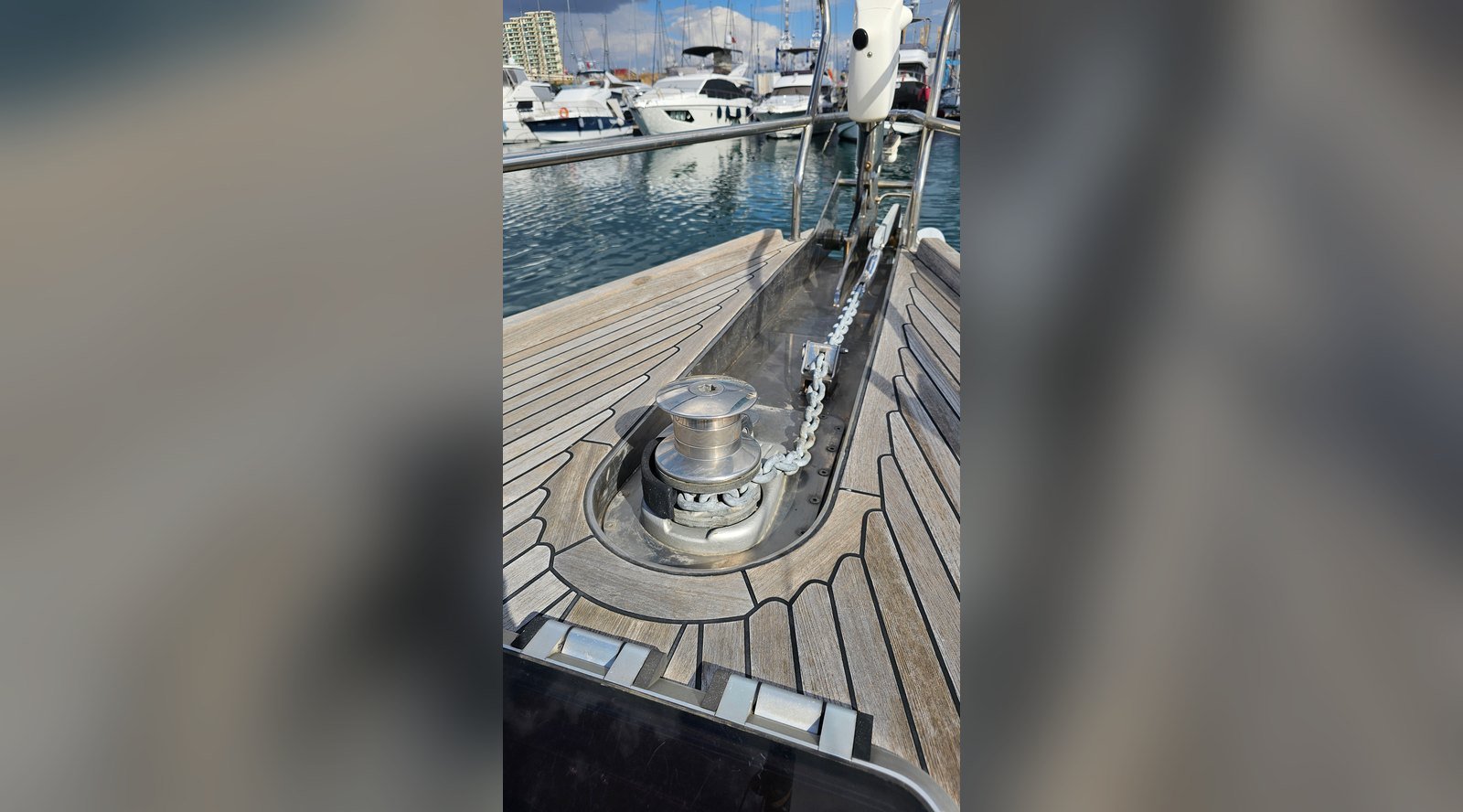

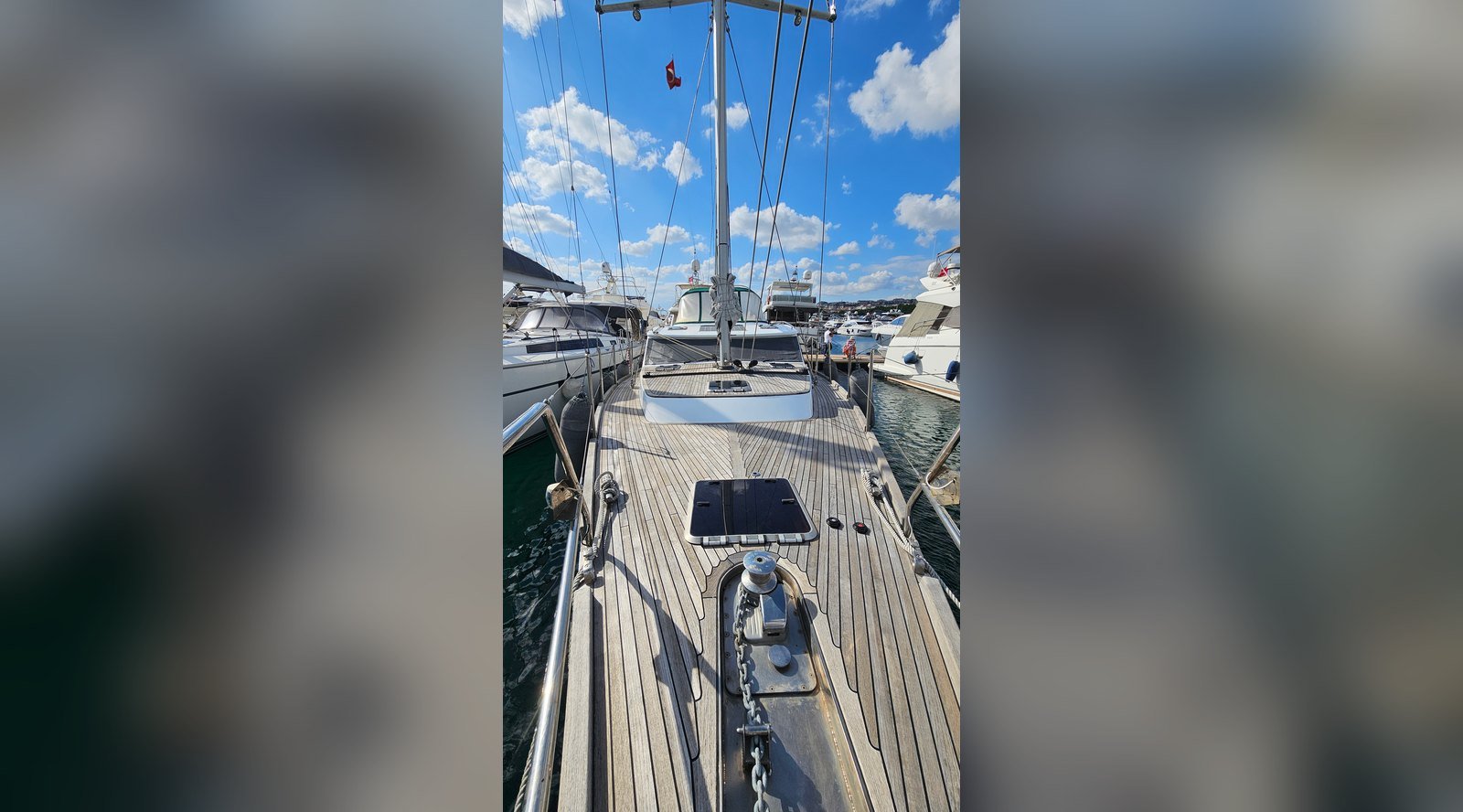

Windlass : Quick Dylan DN4 2000D, remote control and chain counter
Anchor / Chain : Lewmar 48 kg, 100 m x 11 mm chain (DIN 766)
Chain Monitoring : Video camera, viewable at the helm stations
Bow Thruster : Quick BTQ 250-140
Steering : Hydraulic (HyDrive)
Bathing Platform : Folding, with hot shower

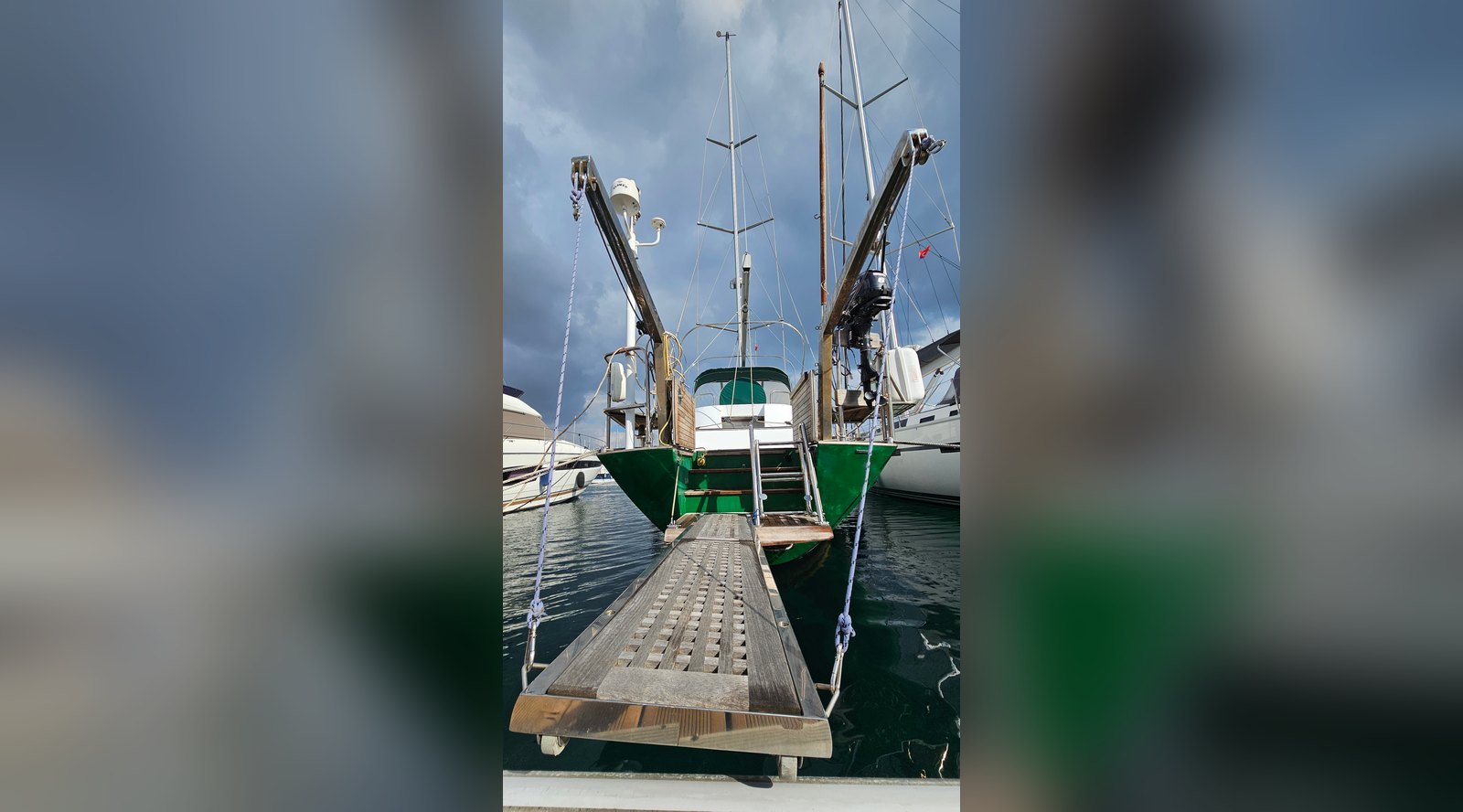

Passerelle : Yes

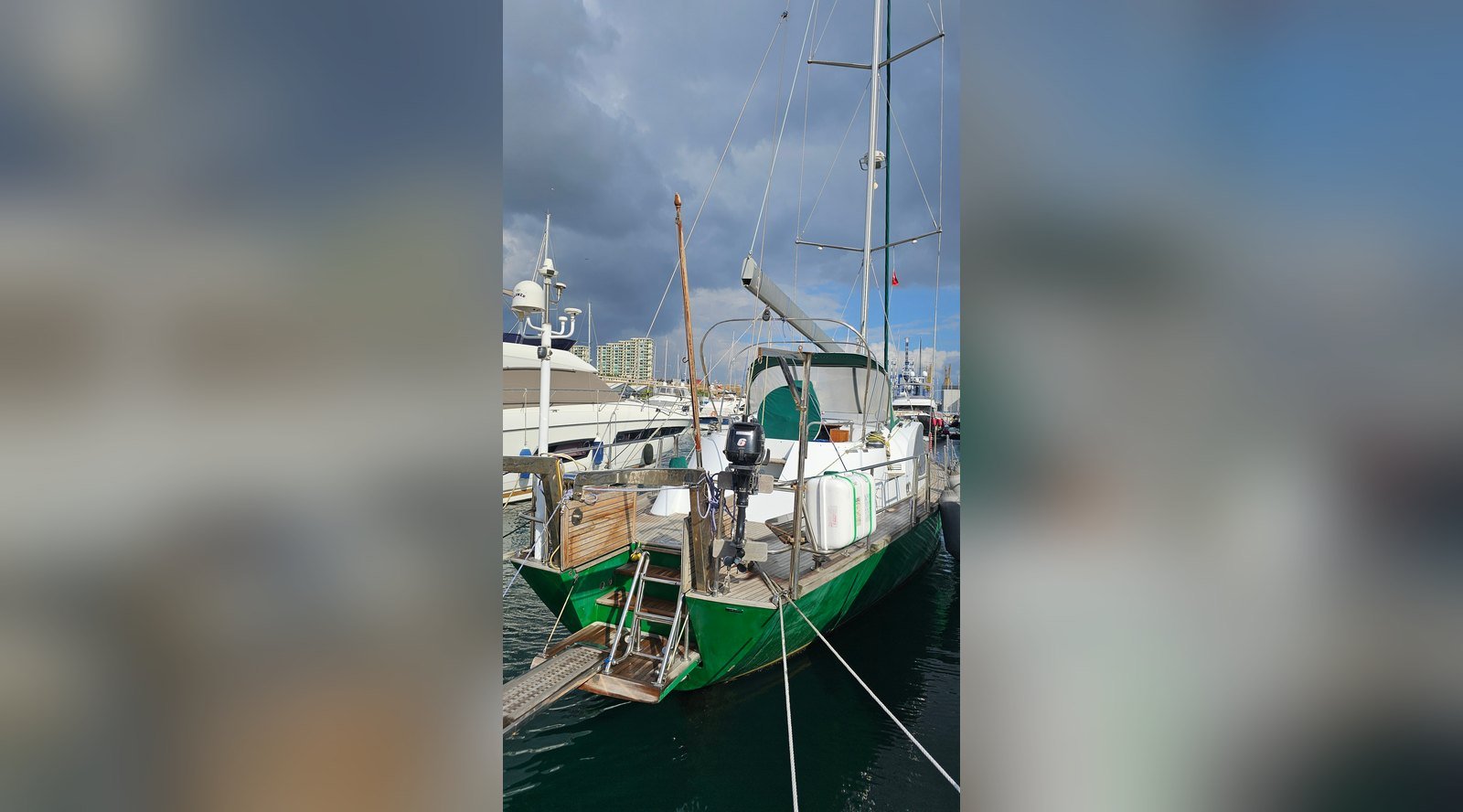

Davits : Stern davits
Canvas : Bimini and sprayhood
Horn : Marco electric horn with fog-signal controller
Outboard : Tohatsu 6 HP
Fire Exting. : Automatic system in the engine room
Life Raft : Yes
Life Jackets : Yes

Navigation & Electronics

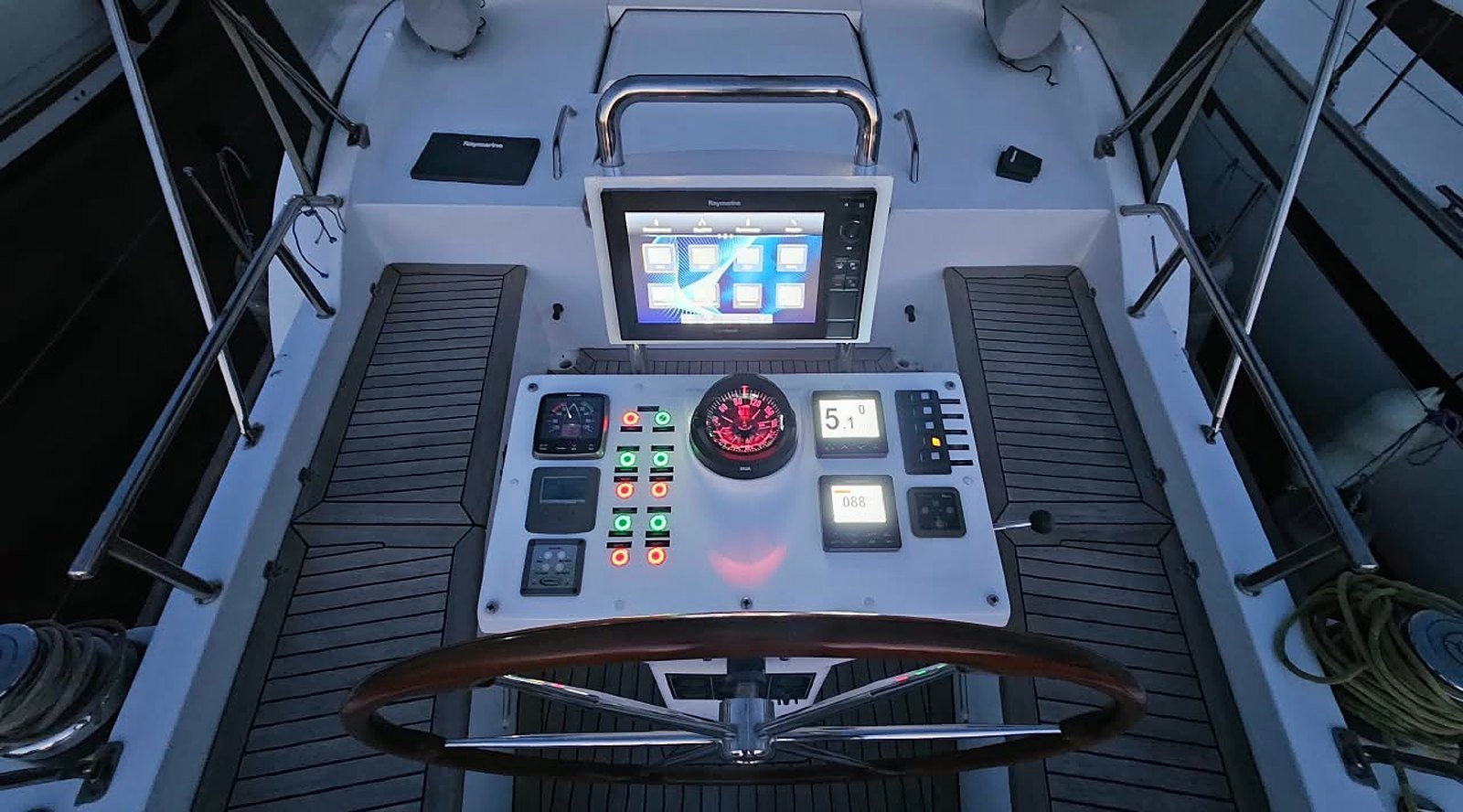

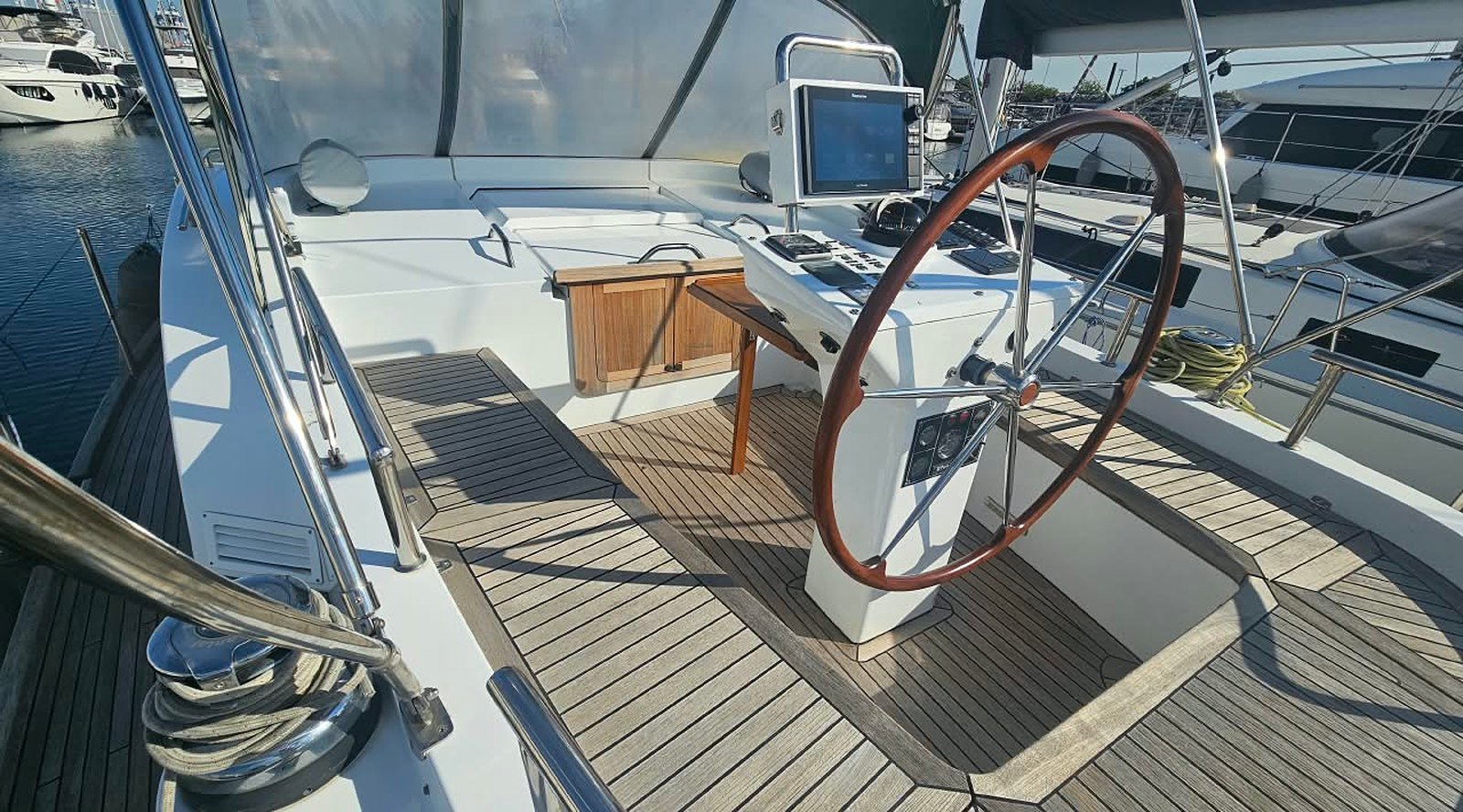

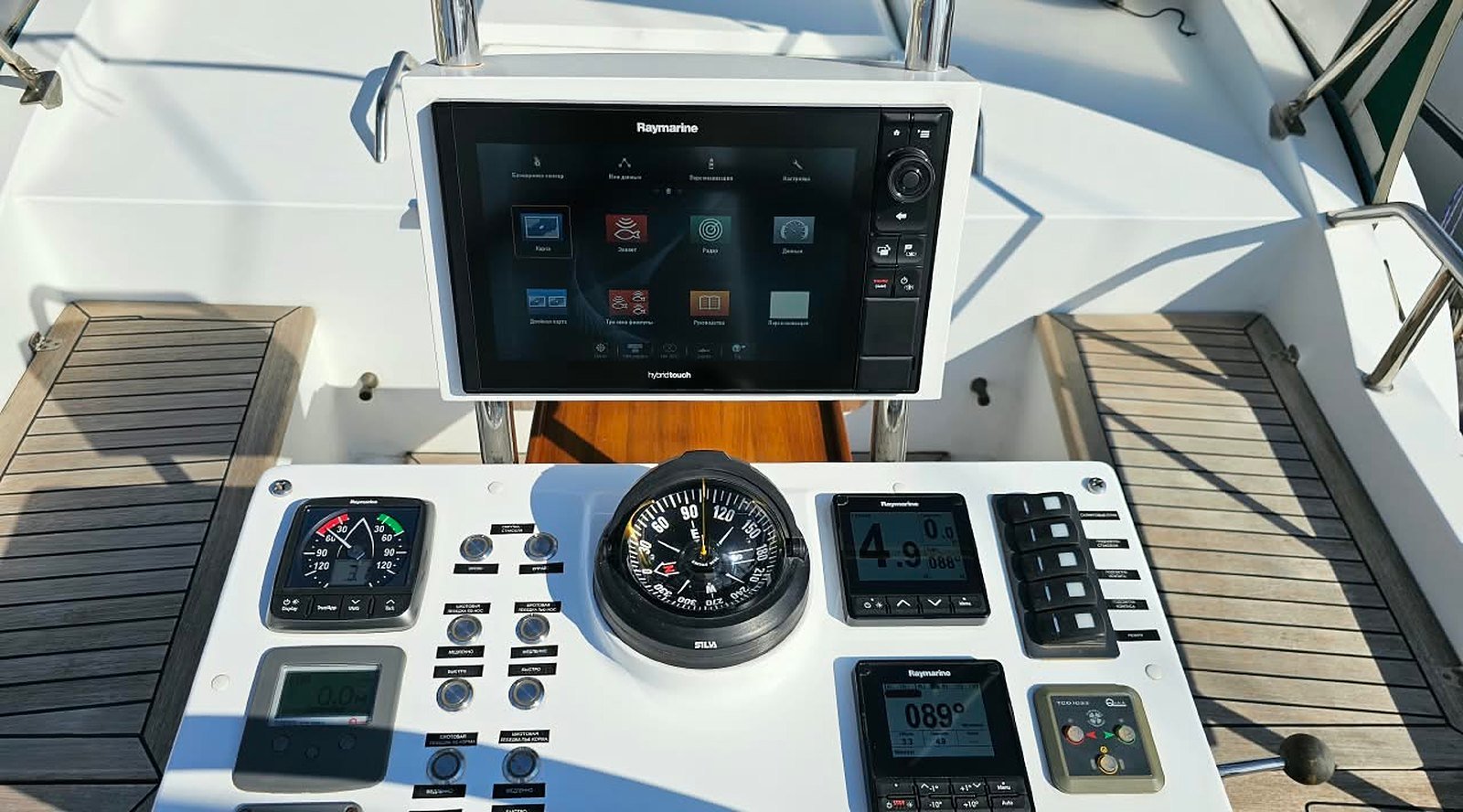

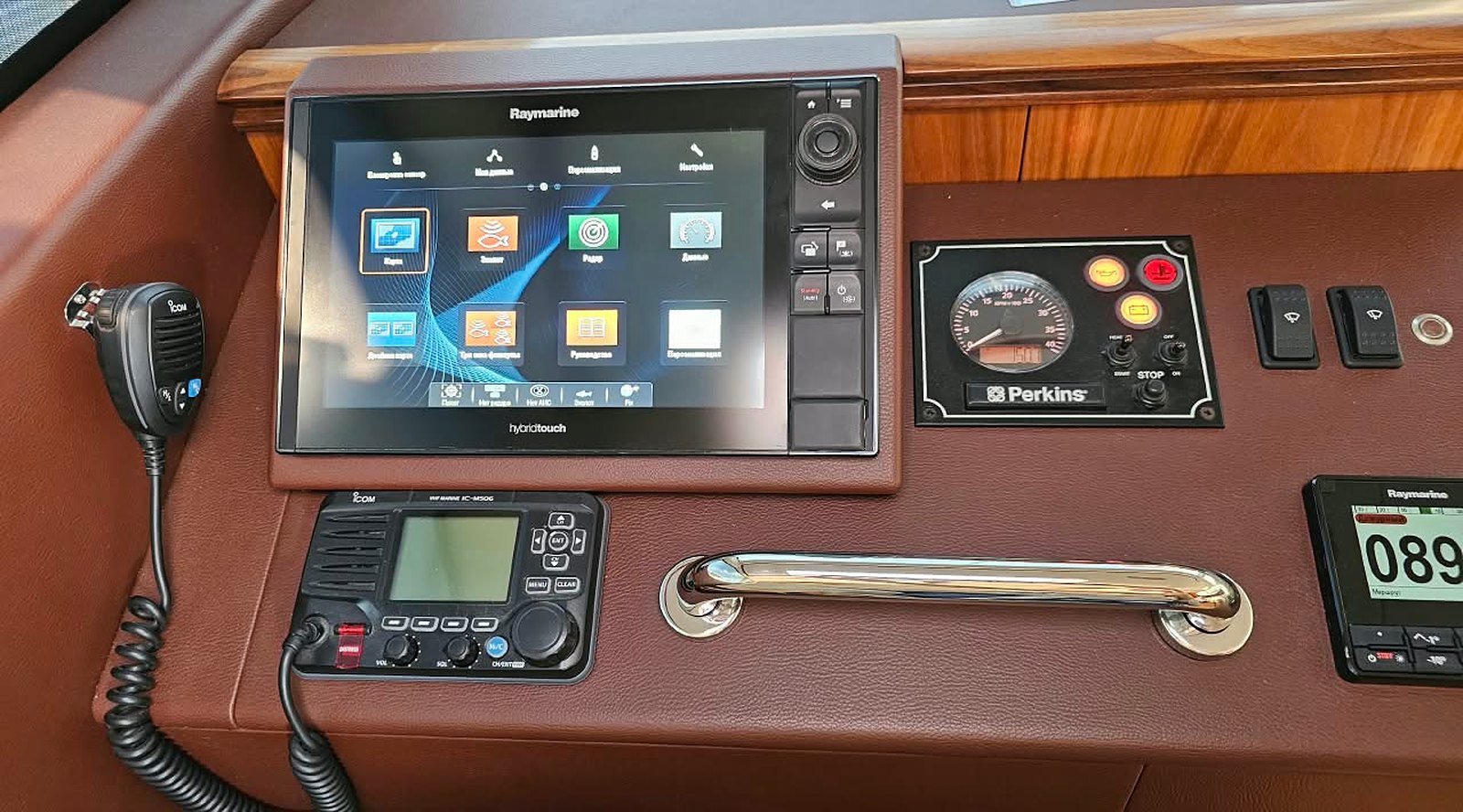

Chart Plotters : 2 x Raymarine ES127 Hybrid Touch (one at each helm)
Radar / AIS / GPS : Raymarine
Auto Pilot : Raymarine ACU-400, p70i control, i70S and p70S displays
Wind Instruments : Raymarine i60 at each helm
Compass : Silva steering compass at the cockpit helm
VHF : ICOM IC-M506 at the nav station
Internet : GLOMEX weBBoat Coastal
TV : Folding TV in the deck saloon, GLOMEX antenna
Music System : HiFi stereo, 100 W amplifier, saloon and cockpit speakers

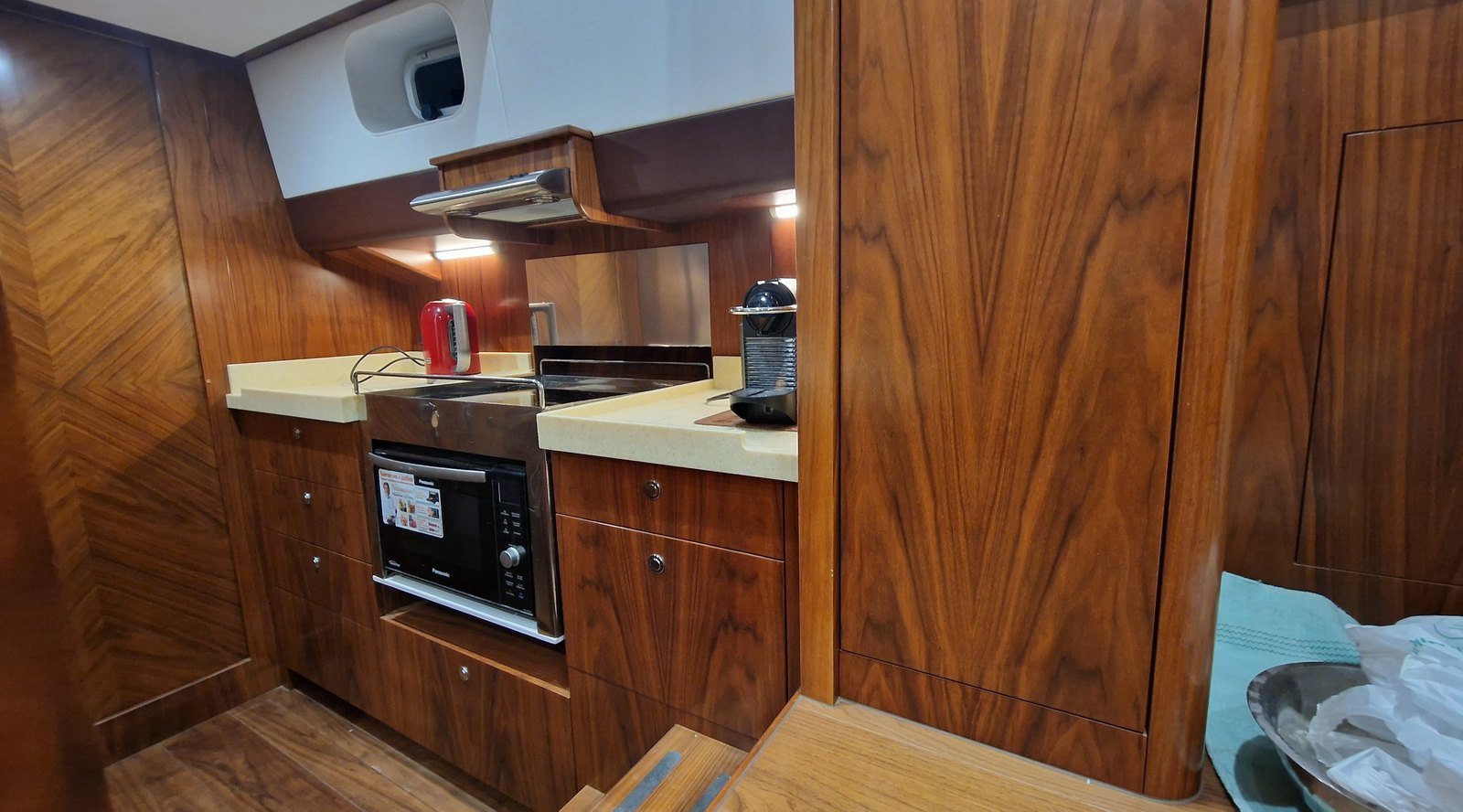

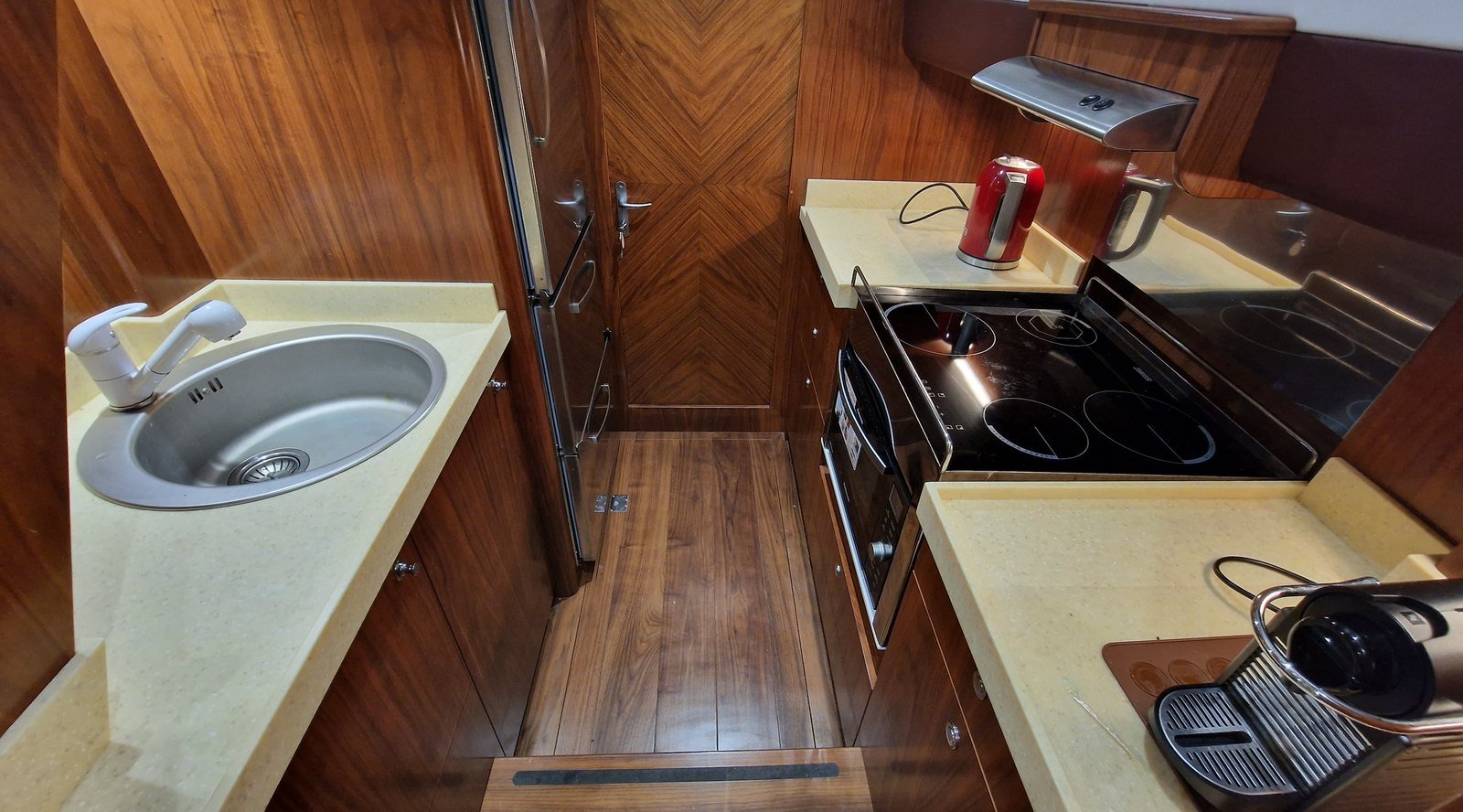

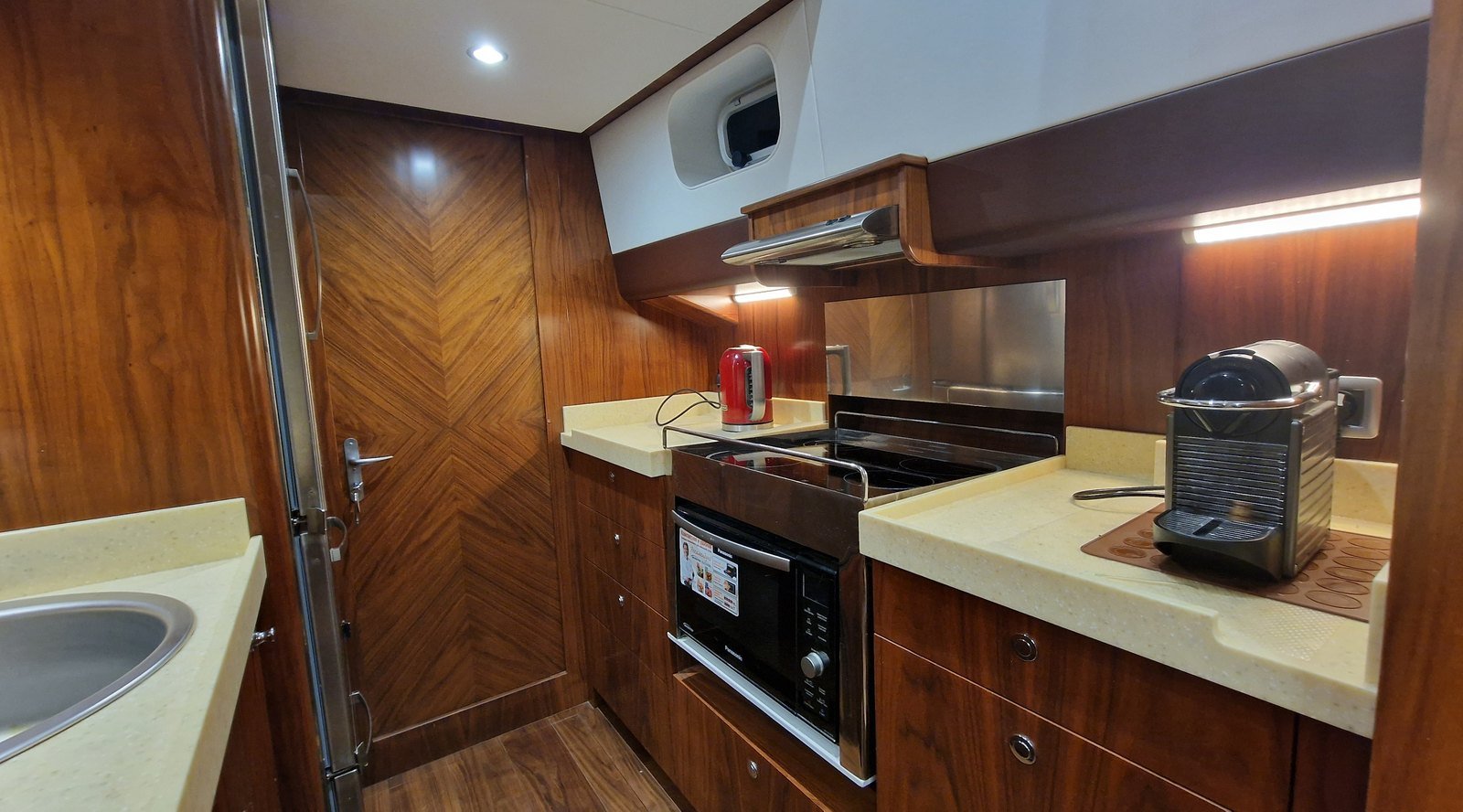

Galley

Cooker : Induction hob
Microwave : Yes
Refrigerator : Vitrifrigo DW360DTX
Worktops : Solid surface with integrated sinks

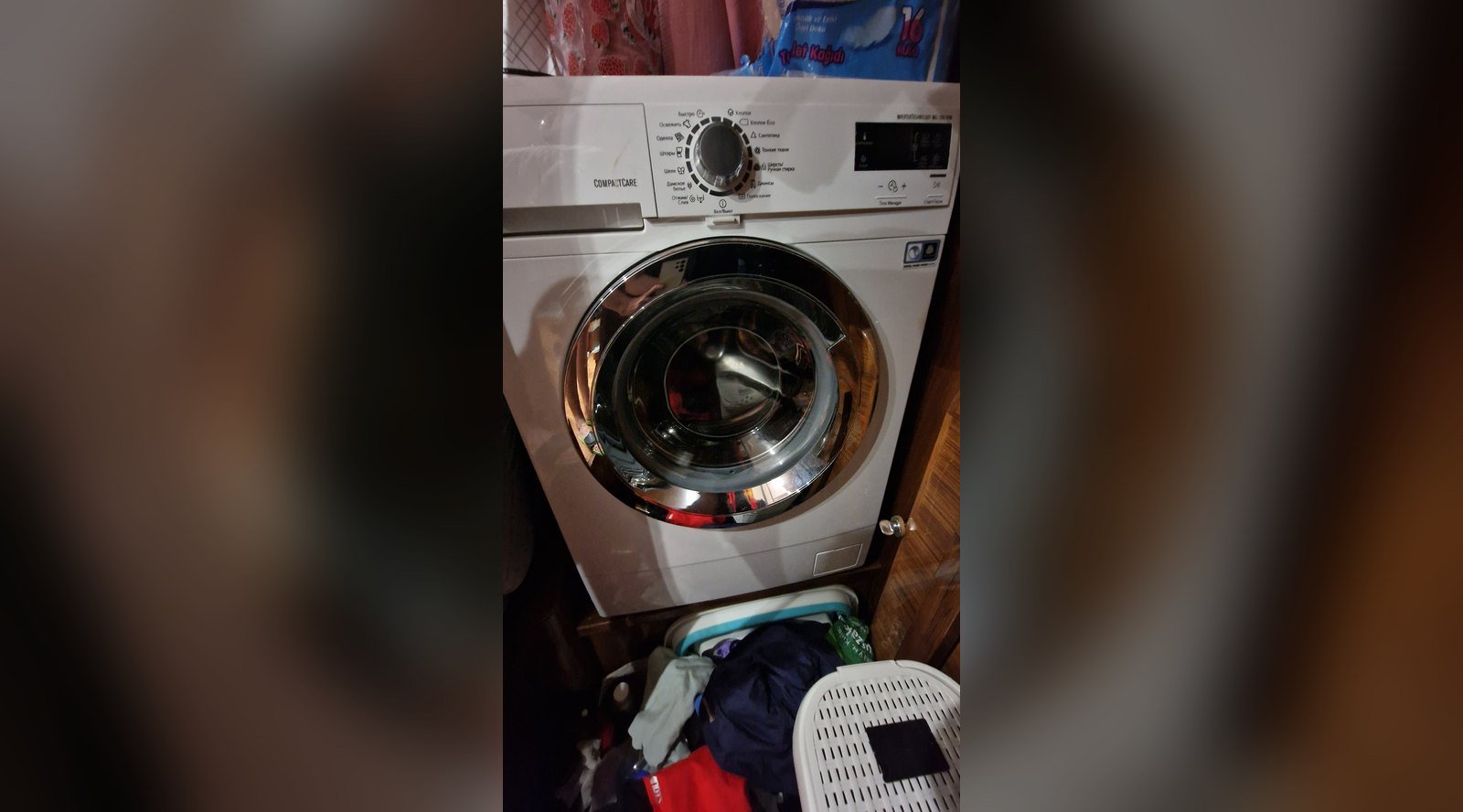

Laundry : Washing machine and ironing board

Accommodation

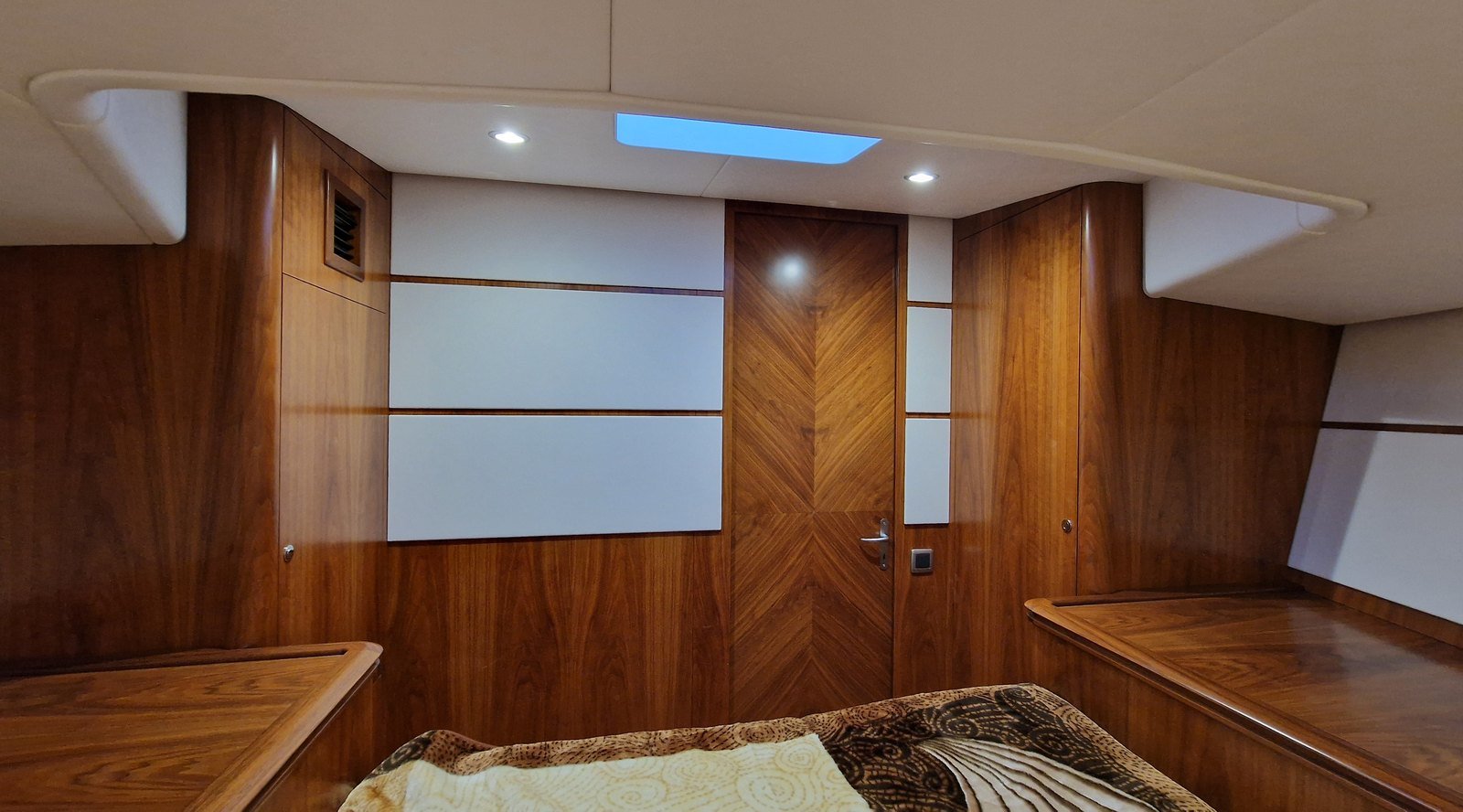

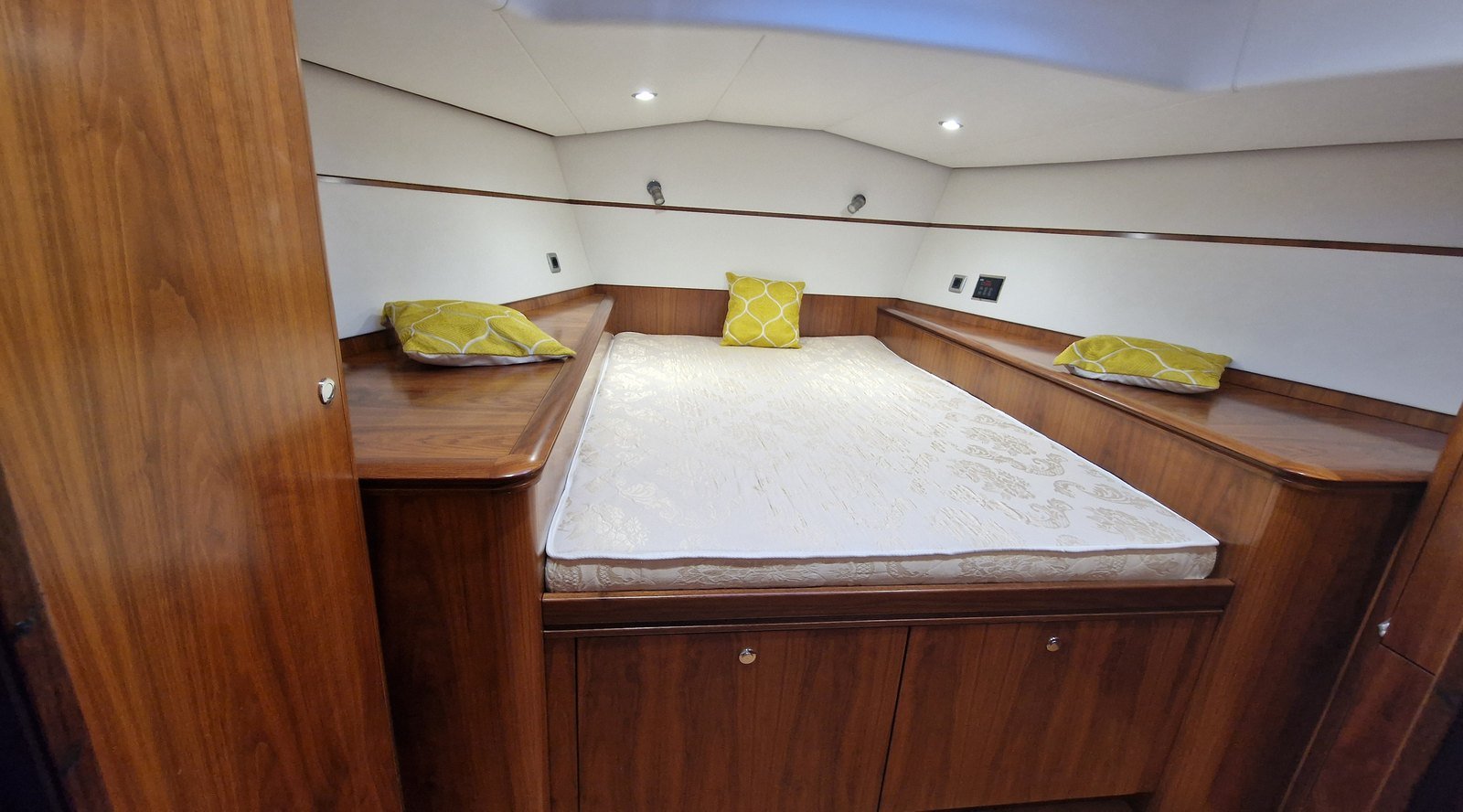

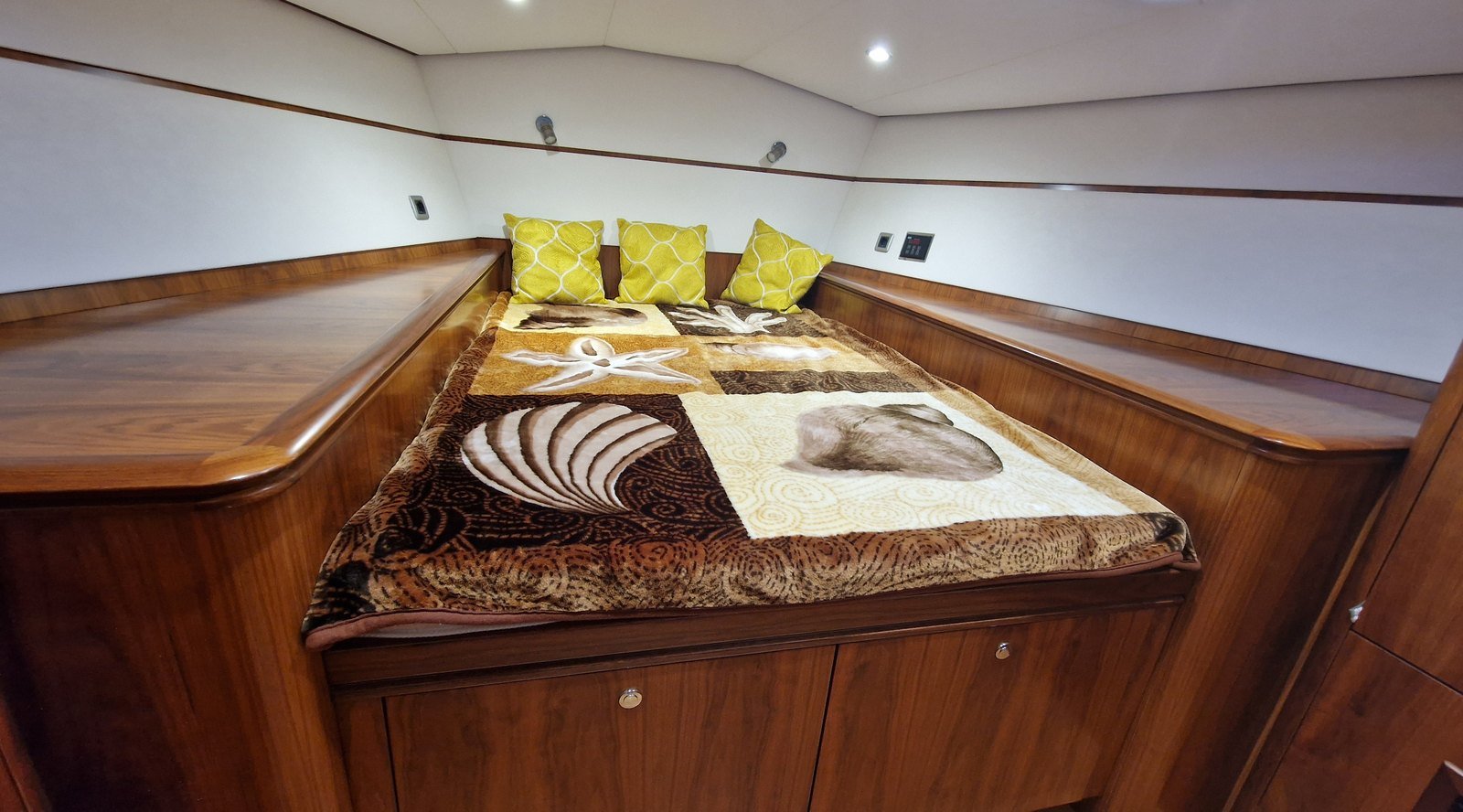

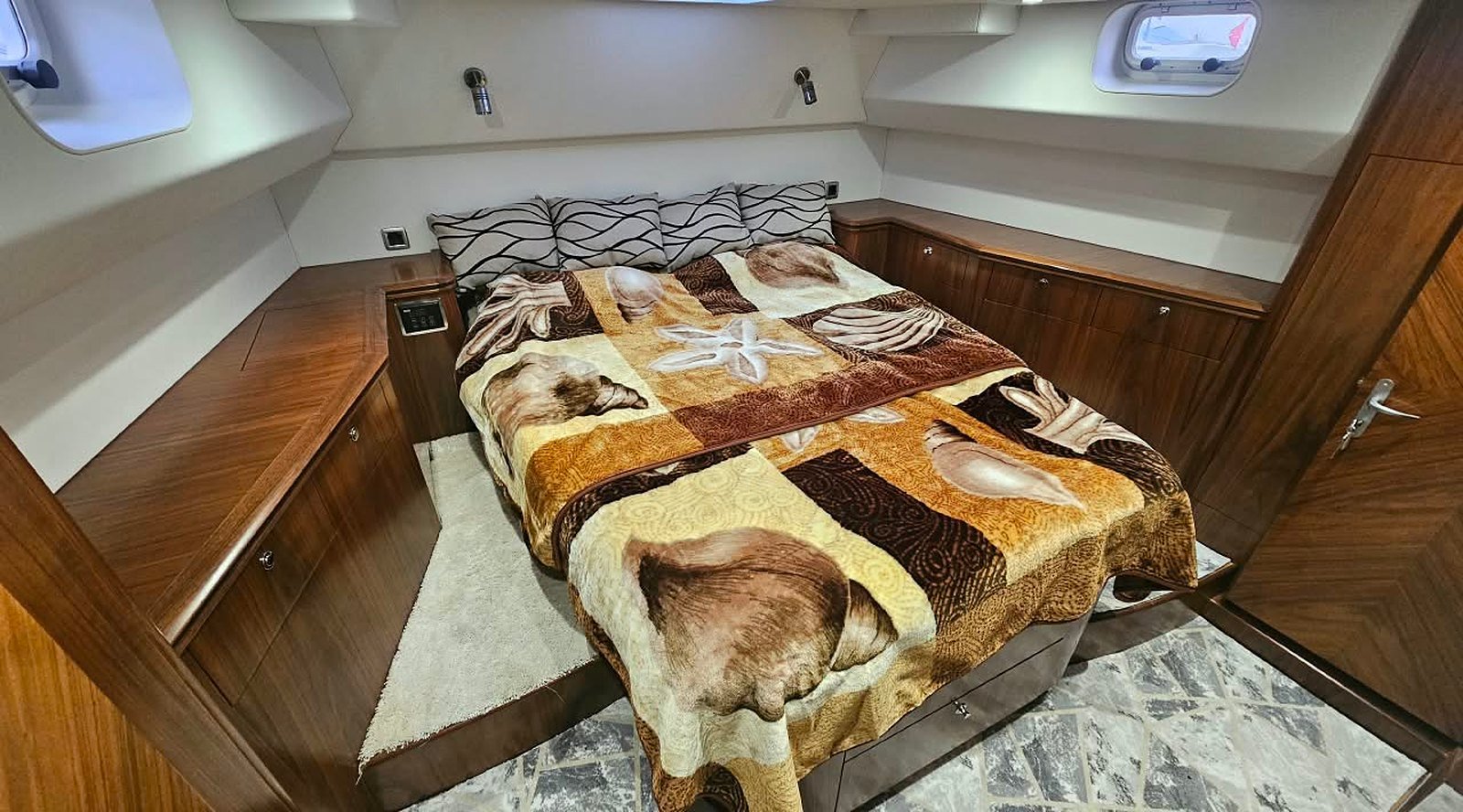

Cabin/Berths : 3 double cabins / 6 guests
Air Condition : Individual unit in each cabin

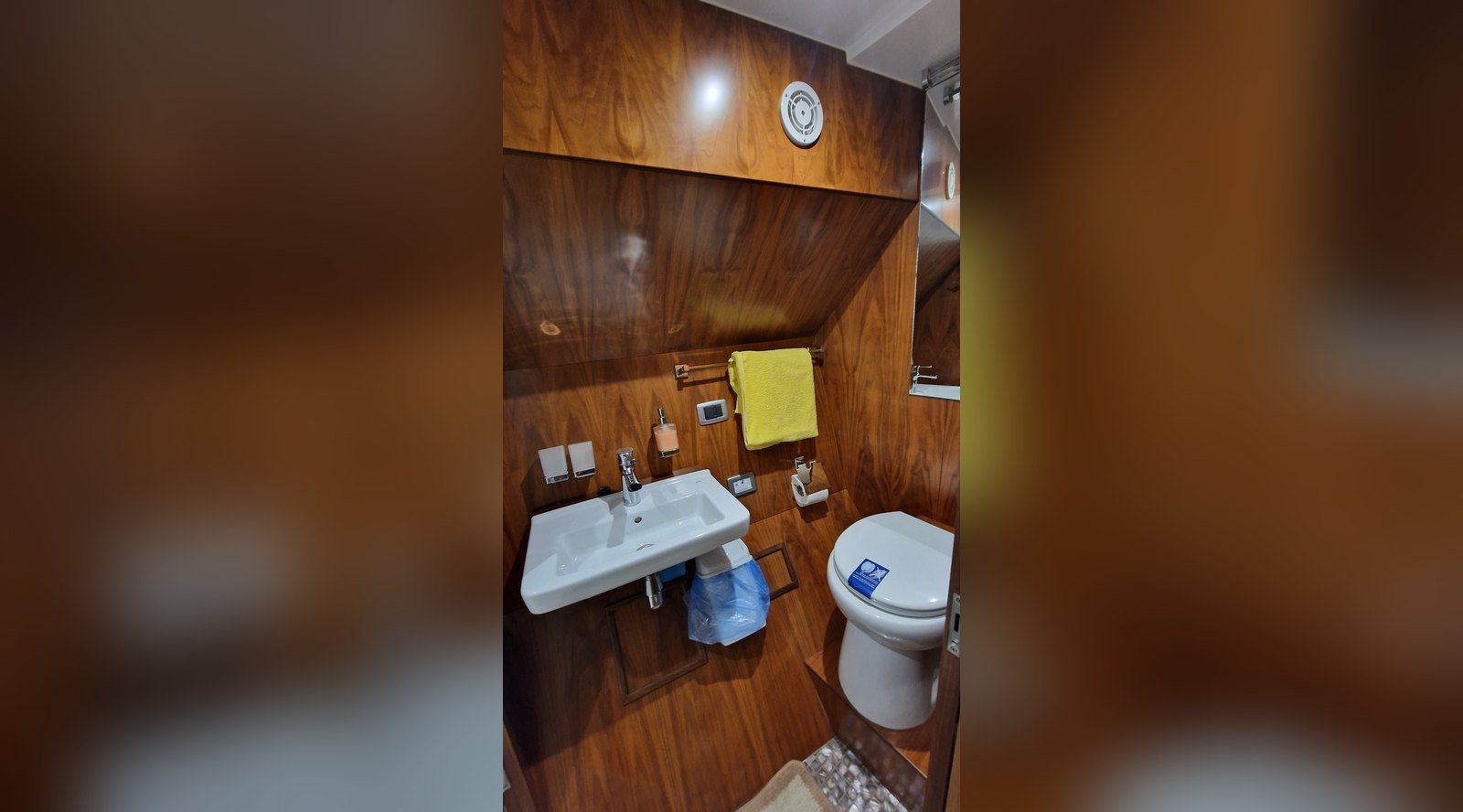

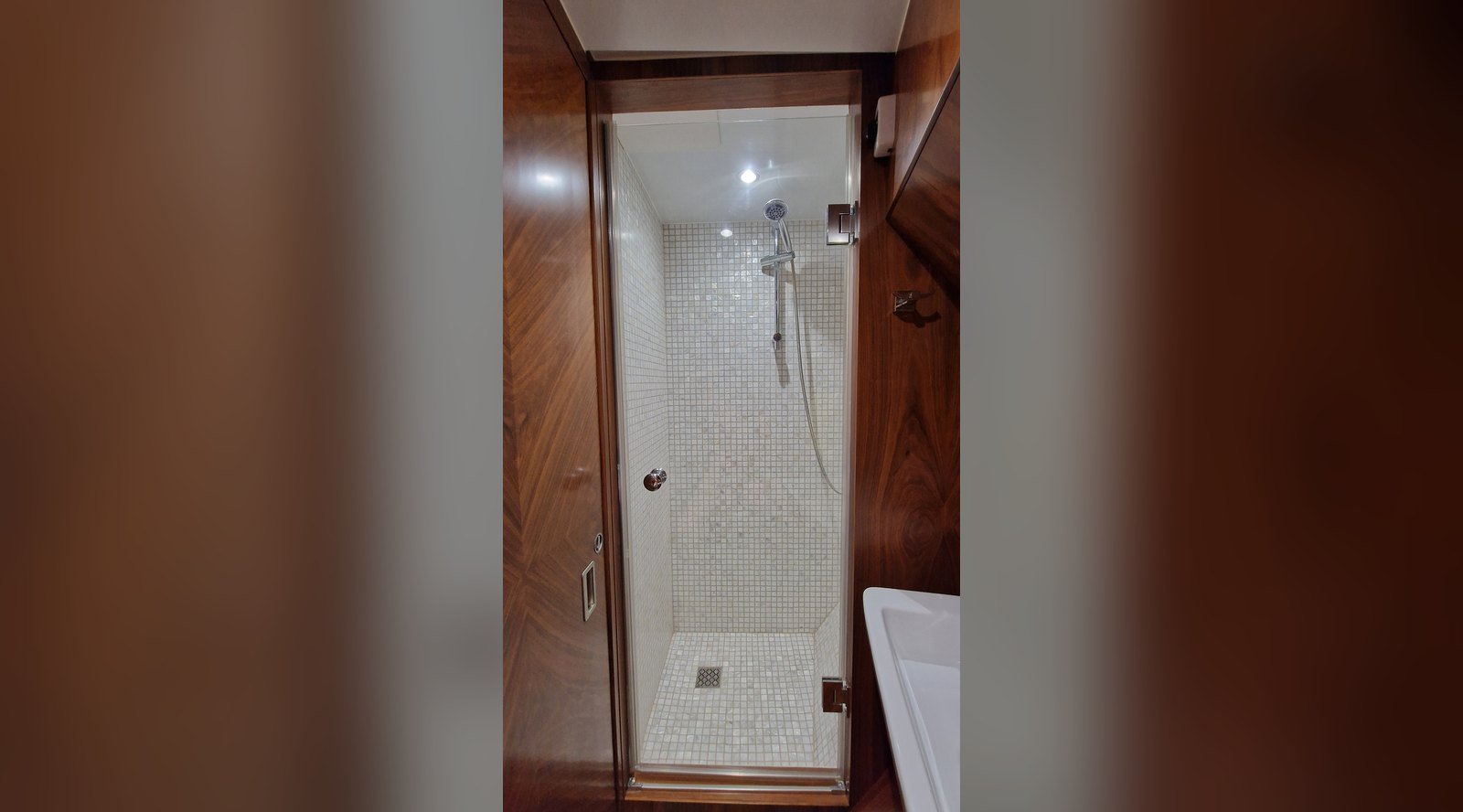

Bathroom : 2 heads with separate showers
Toilet Type : Tecma Premium electric toilets

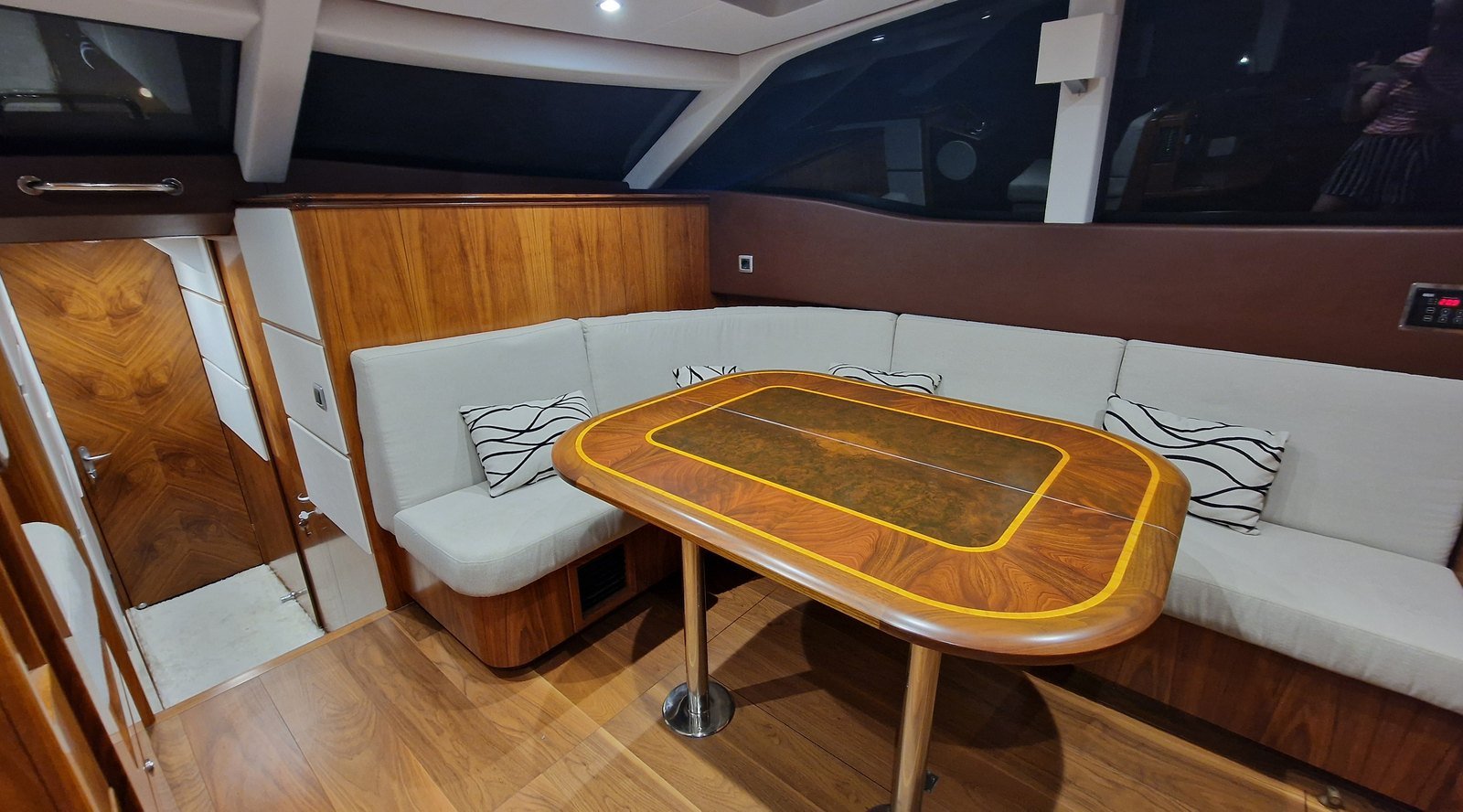

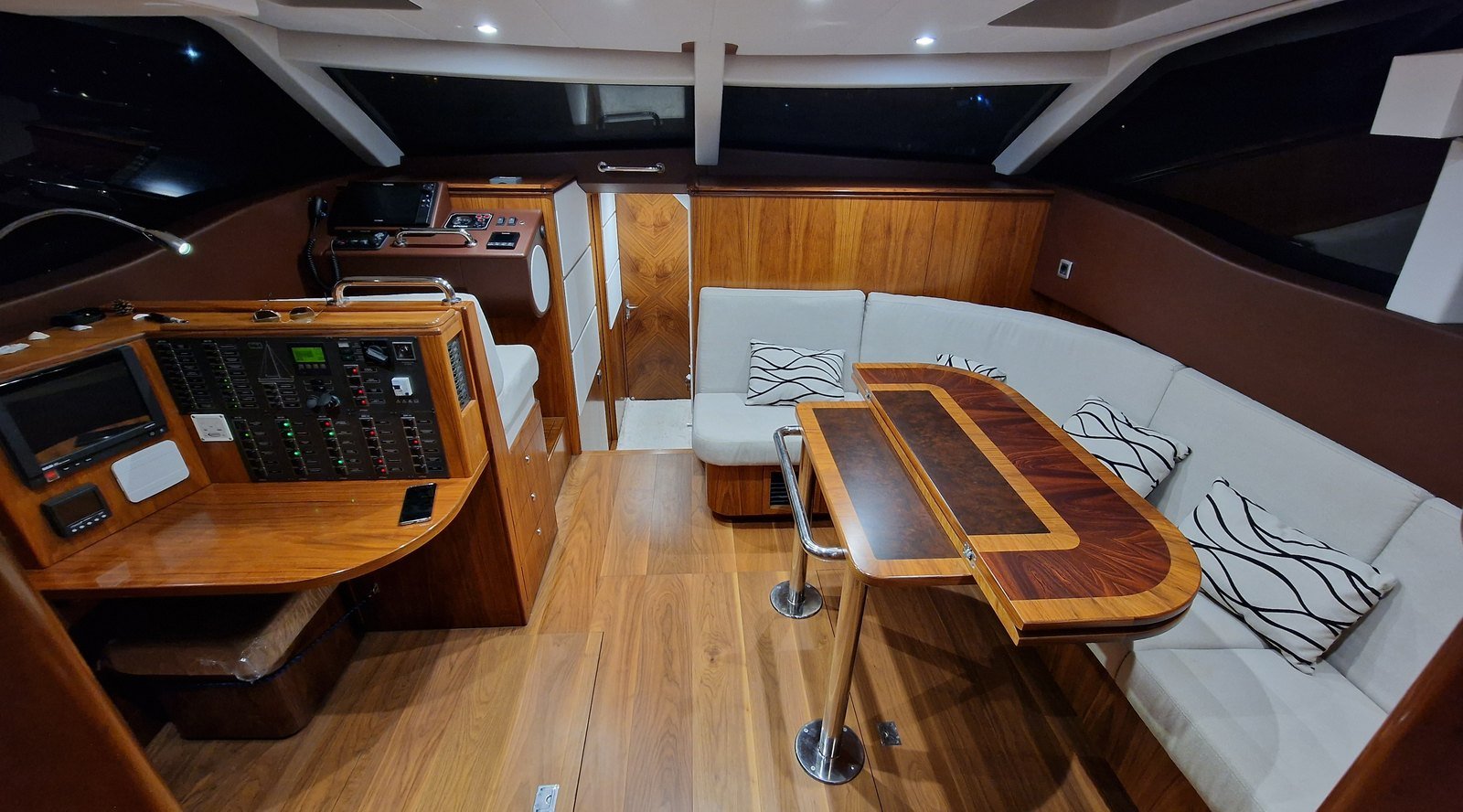

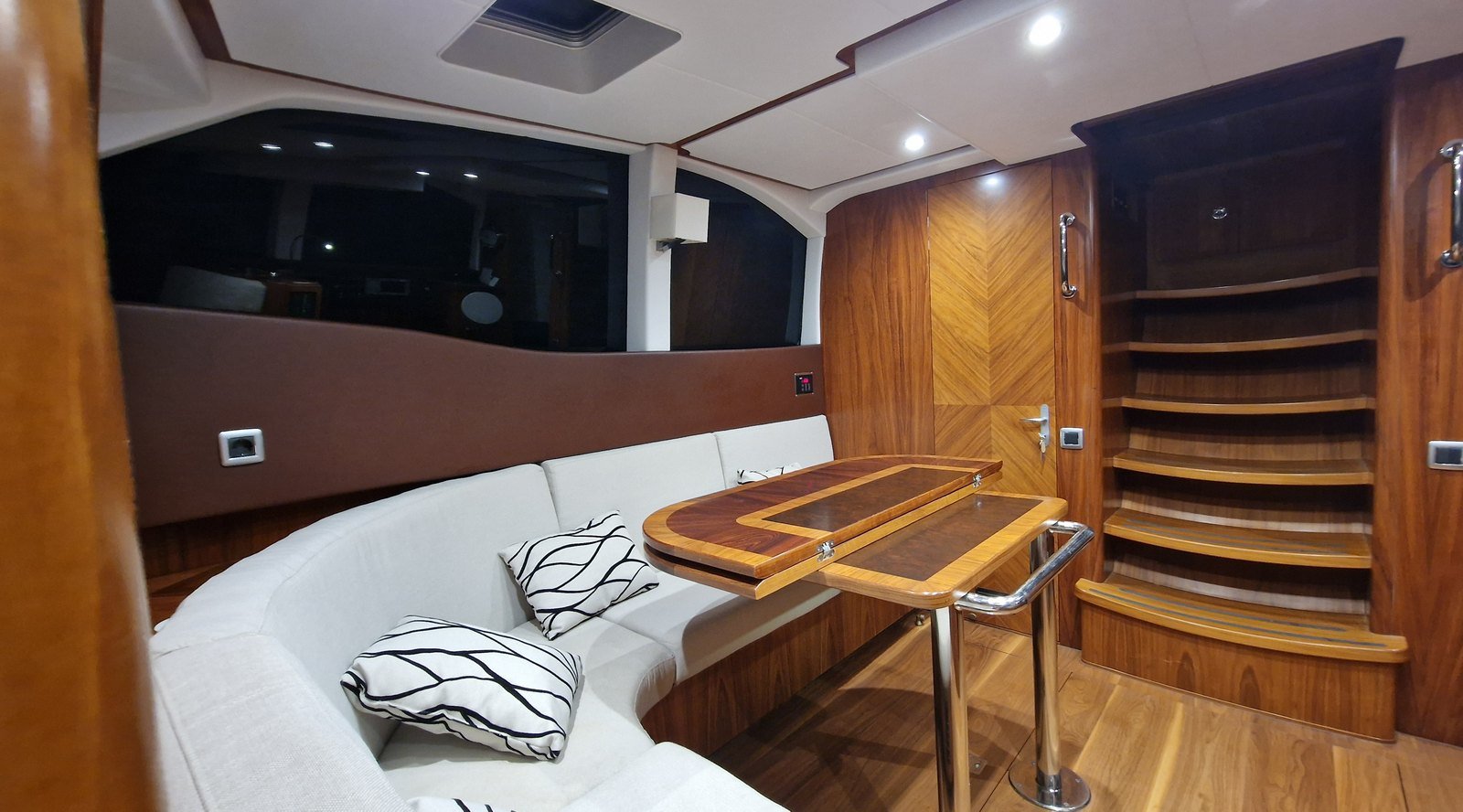

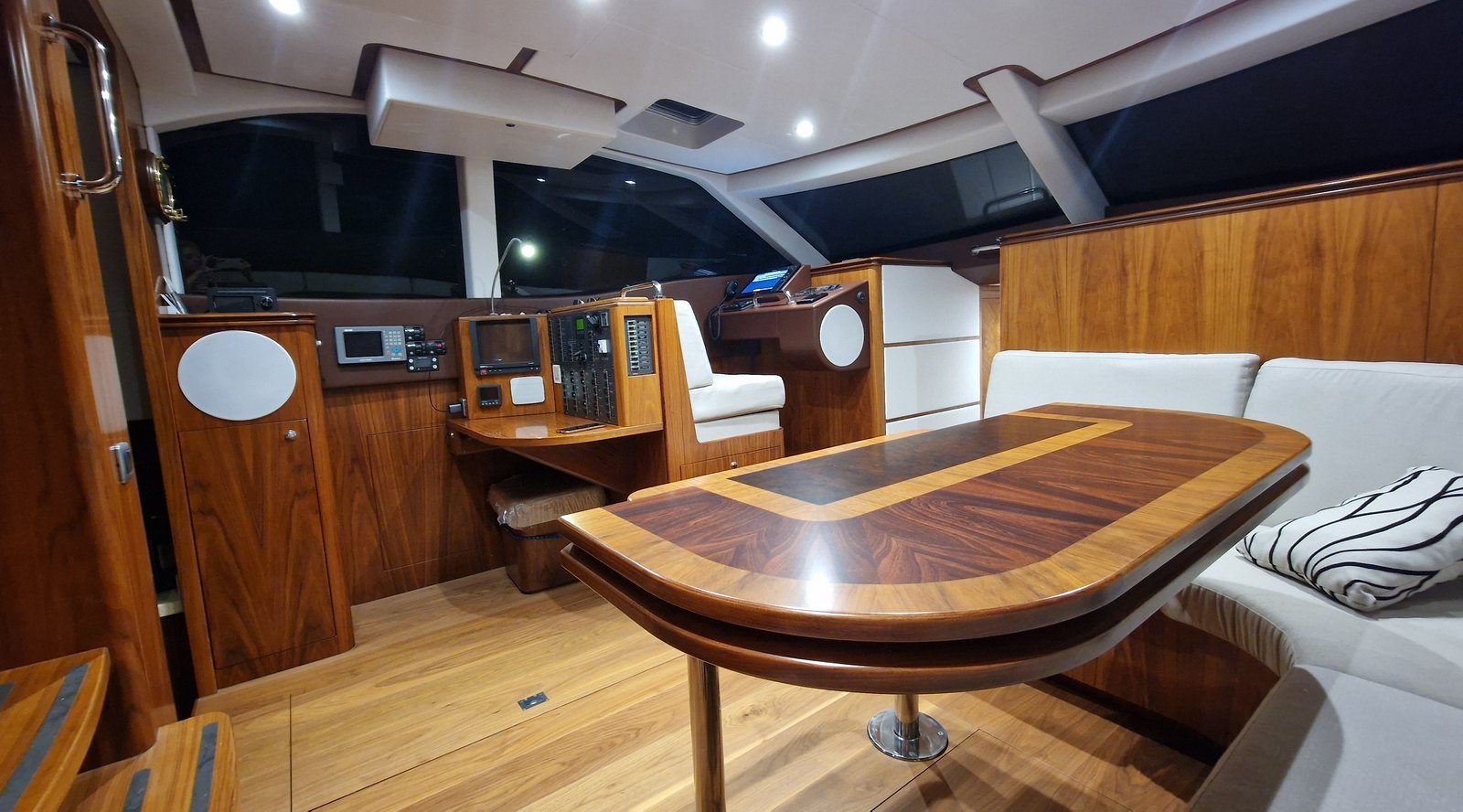

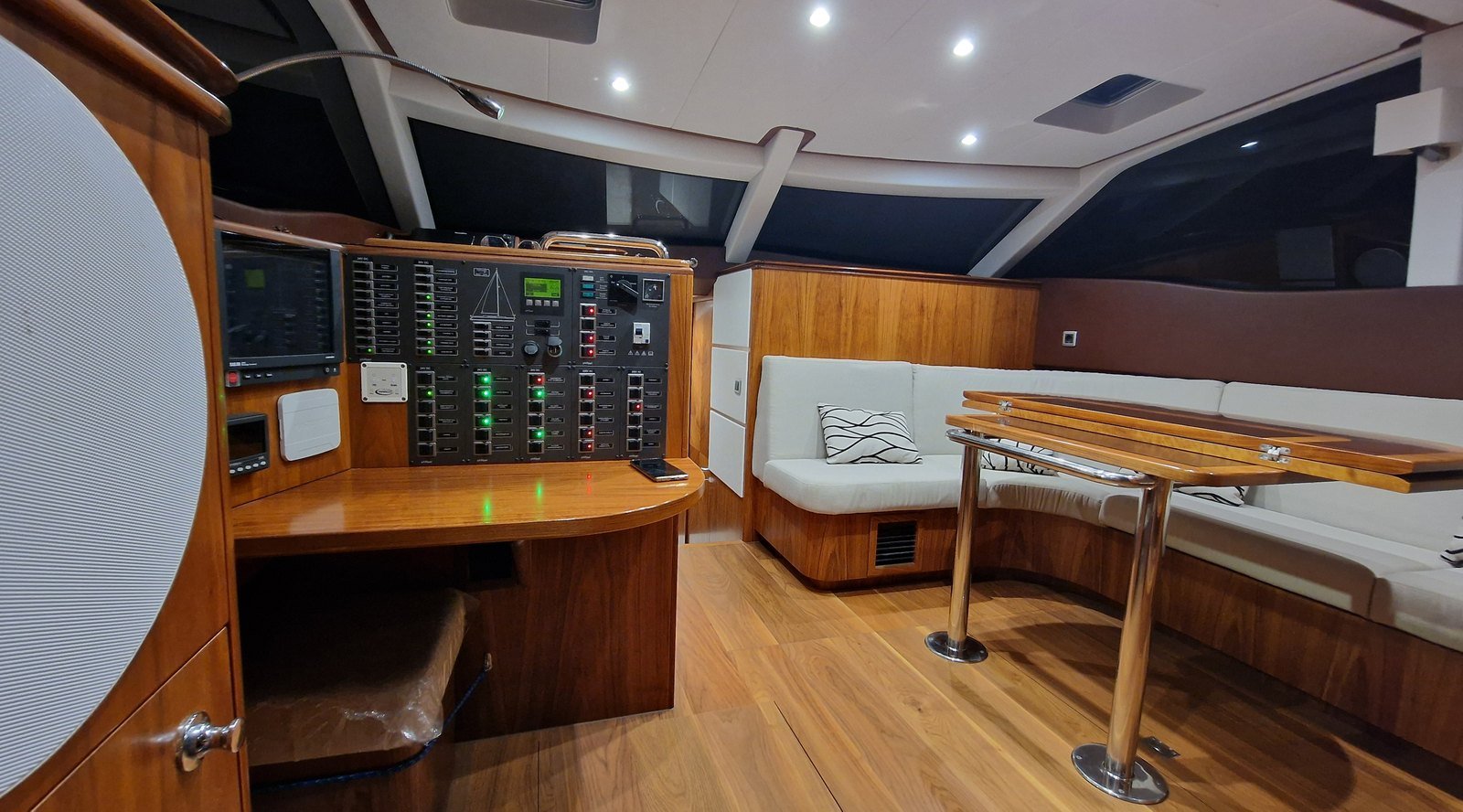

Saloon : Deck saloon with 360° view, inside helm, U-shaped settee and dining table

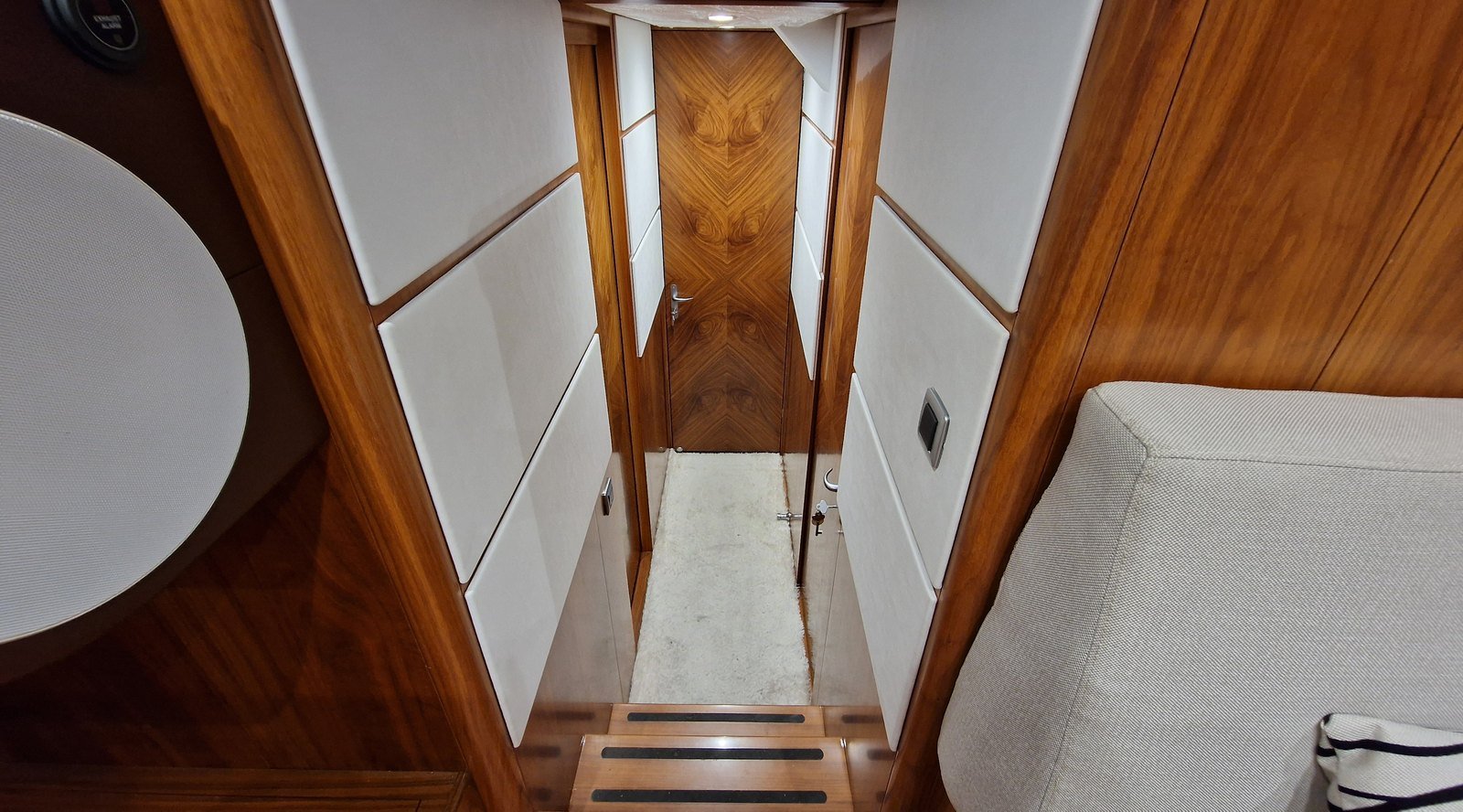

Interior : Hand-polished American walnut, Italian beige leather
Wet Locker : Separate ventilated wardrobe for foul-weather gear
Windows : 19 mm triplex saloon glass

Sails & Rigging

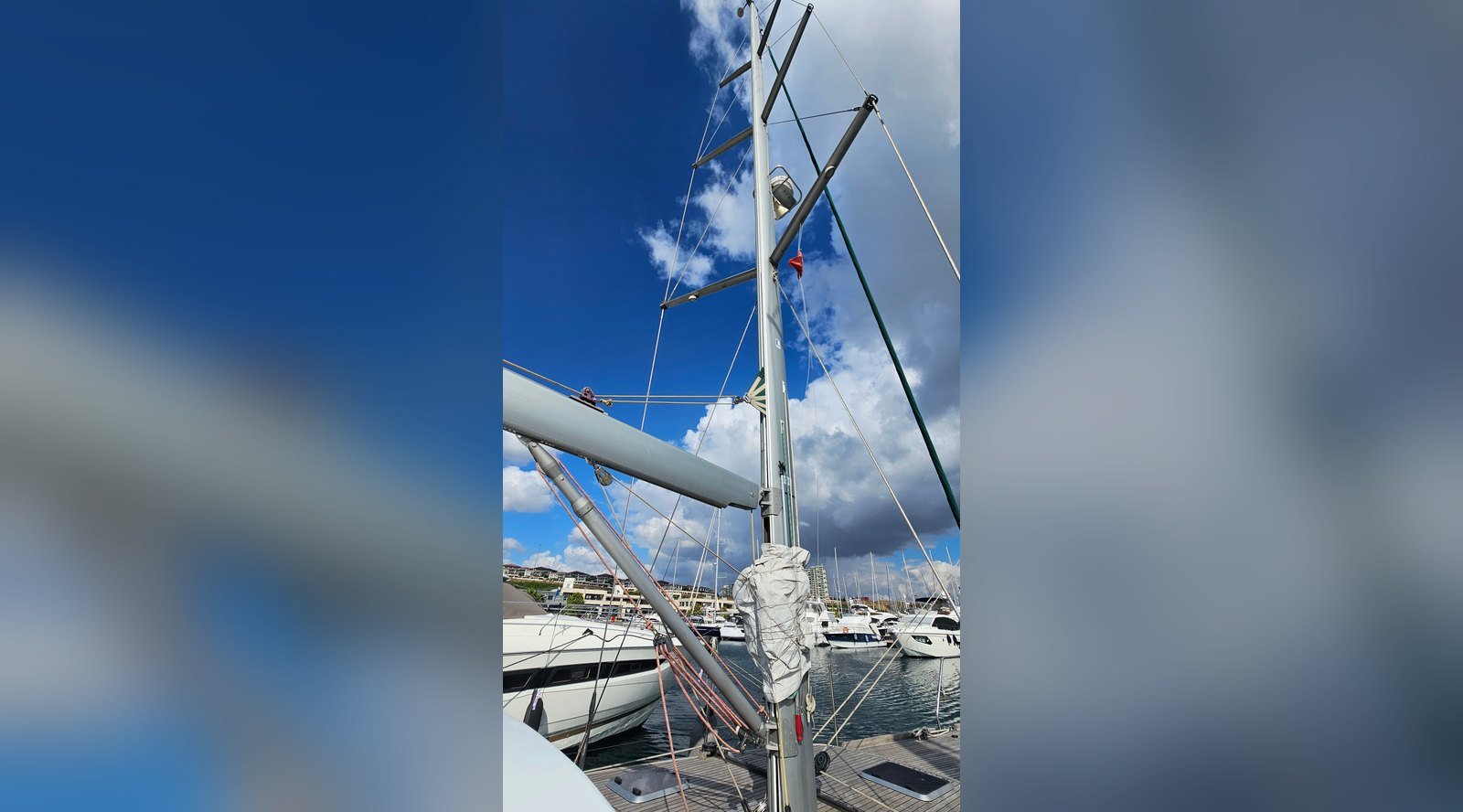

Mast : Sparcraft
Running Rigging : Antal
Main Sail : Furling, 80 m²
Jib : Self-tacking, electric furling, 49 m²
Winches : 4 x Antal XT62CH two-speed electric, remote control from the helm, + 1 x Antal W42CH at the mast
